Place of Origin:
CHINA
Brand Name:
Hochiry
Certification:
CE/ROHS/ISO9001/ANATEL
Model Number:
GYTXW Fiber Cable
Contact Us

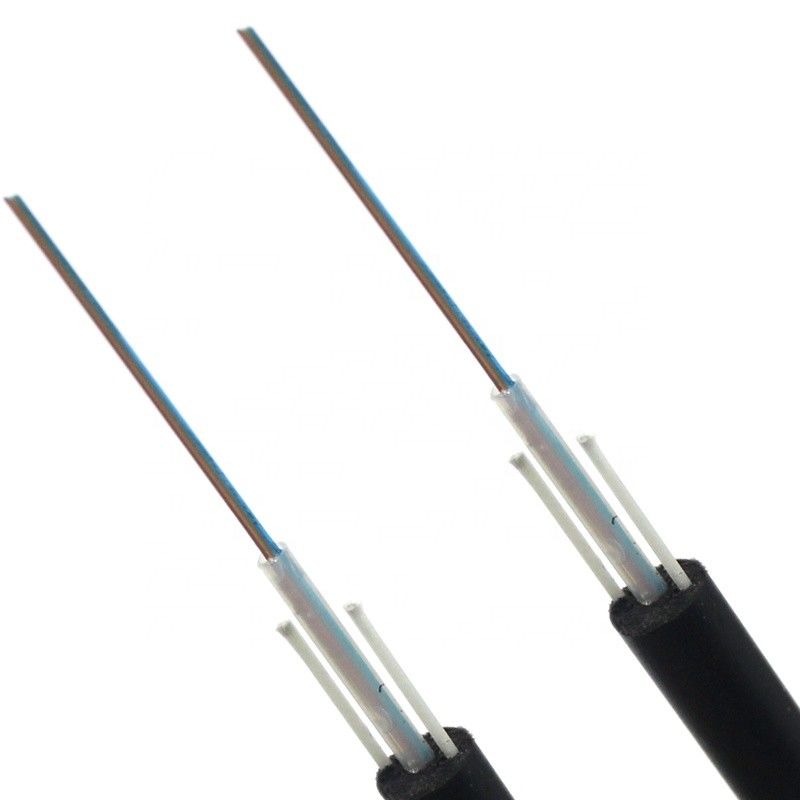

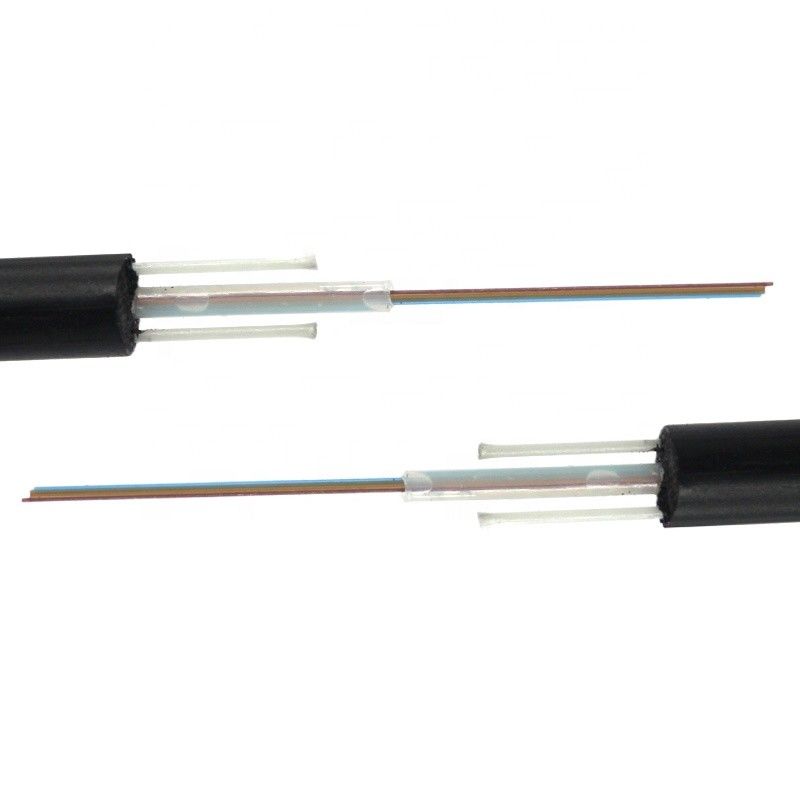

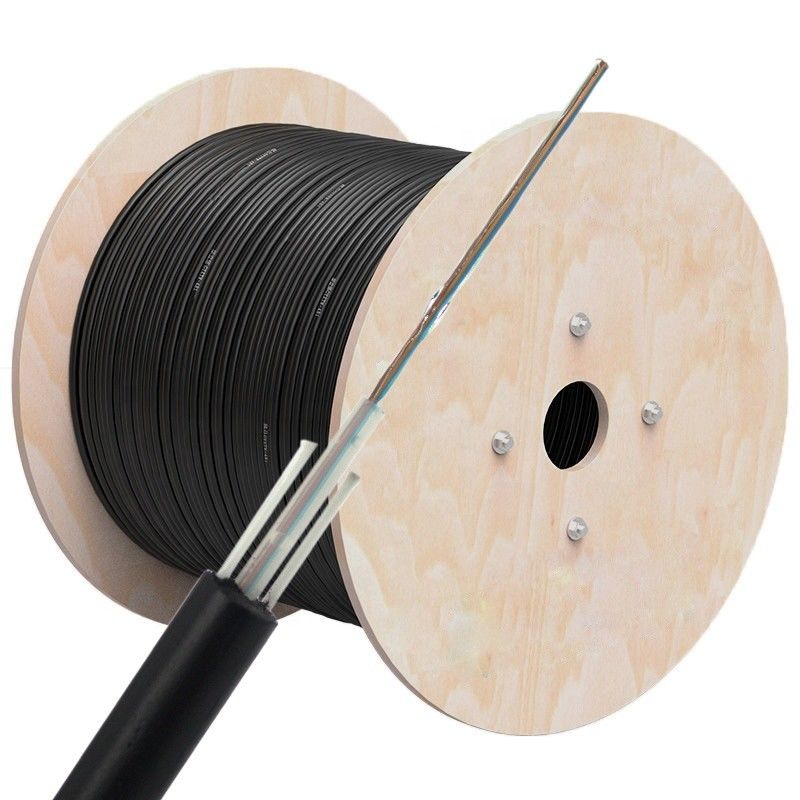

Nonmetal G655 G652D G657A 12F Overhead Outdoor Round Fiber Optic Drop Cable GYXFTY
Description:
GYXFTY fiber optic cable is a non-metallic all dielectric cable used for power transmission system, excessive thunder areas and high electromagnetic interface. The cable tubes, which are filled with filling compound, there is a central loose tube, and with parallel FRP strength member. the cable is completed with a PE sheath. GYXFTY cables are available from 2 core to 12 core. It is used in high-voltage area for long distance aerial or duct application
Features:
Technical Parameters:
| Cable Type | Fiber Count | Cable Diameter | Cable Weight | Tensile Strength | Crush Resistance | Bending Radius |
| Long/Short Term | Long/Short Term | Static/Dynamic | ||||
| mm | kg/km | N | N/100mm | mm | ||
| GYXS/GYXTW-2~12 | 2~12 | 10 | 105 | 600/1500 | 300/1000 | 10D/20D |
| GYXS/GYXTW-2~12 | 2~12 | 10.6 | 124 | 1000/3000 | 1000/3000 | 10D/20D |
| GYXS/GYXTW-14~24 | 14~24 | 12.5 | 149 | 1000/3000 | 1000/3000 | 10D/20D |
| GYXS/GYXTW-26~36 | 26~36 | 14 | 190 | 1000/3000 | 1000/3000 | 10D/20D |
| GYXS/GYXTW-38~48 | 38~48 | 15 | 216 | 1000/3000 | 1000/3000 | 10D/20D |
Package and Delivery
