Place of Origin:
CHINA
Brand Name:
Hochiry
Certification:
CE/ROHS/ISO9001/ANATEL
Model Number:
GYTC8A/GYTC8S fiber optic cable outdoor
Contact Us

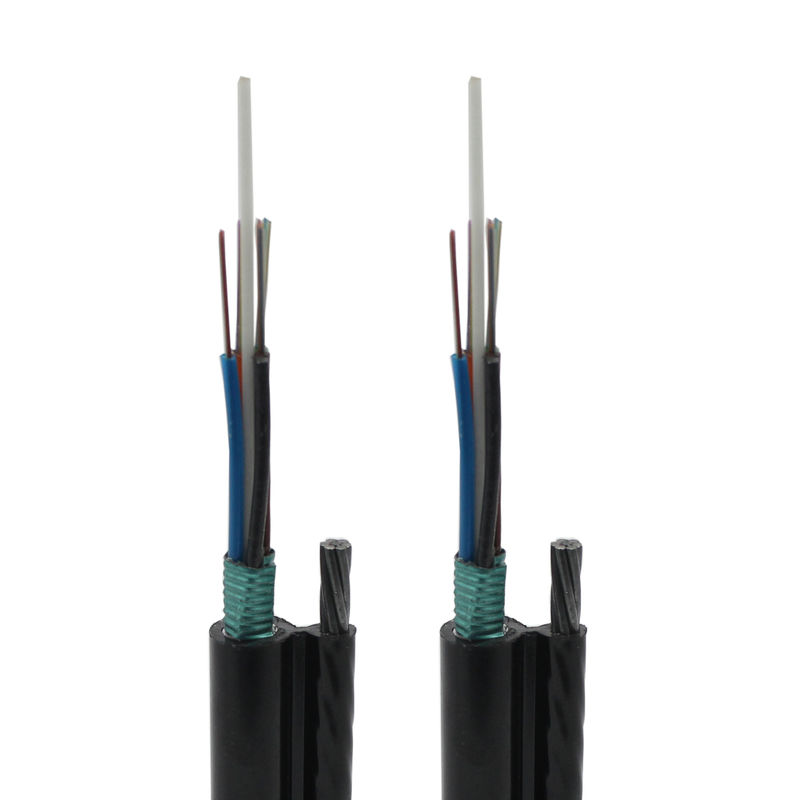

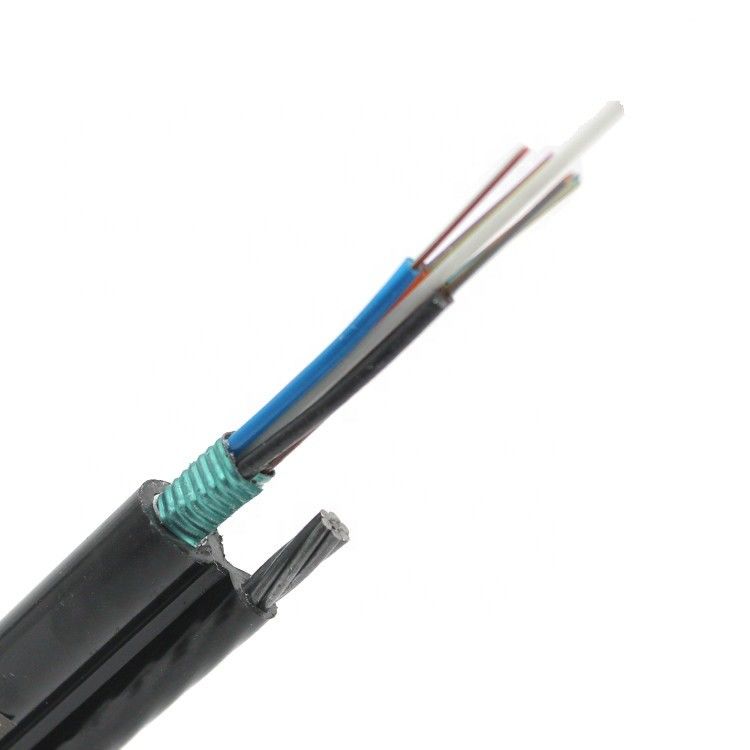

Figure 8 Self-Supporting Armored GYTC8A Fiber Optic Cable Outdoor
Description:

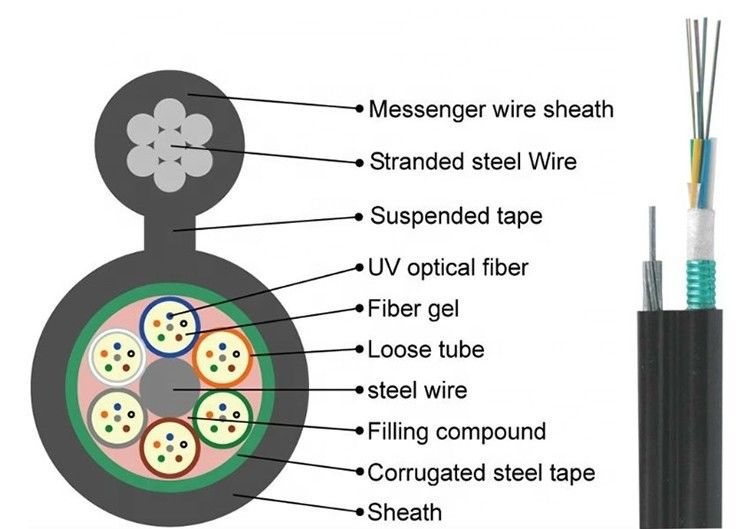

The fibers are positioned in the loose tube which is made of a modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire locates in the center of core as a metellic strength member. The tubes are stranded around the strength member into a compact and circular cable core. After a Plastic coated steel strip and sheath, this part of cable accompanied with the stranded wires as the supporting part are completed with a polyethylene sheath to be figure 8 structure.
Features:
Application:
Technical Parameters:
| Cable Type | Fiber Count | Tubes | Fillers | Cable Diameter | Cable Weigh | Long/Short Term | Long/Short Term | Static/Dynamic |
| mm | kg/km | N | N/100mm | mm | ||||
| GYTC8A-2~6 | 2~6 | 1 | 4 | 9.5×18.3 | 218 | 600/1500 | 300/1000 | 10D/20D |
| GYTC8A-8~12 | 8~12 | 2 | 3 | 9.5×18.3 | 218 | 600/1500 | 300/1000 | 10D/20D |
| GYTC8A-14~18 | 14~18 | 3 | 2 | 9.5×18.3 | 218 | 600/1500 | 300/1000 | 10D/20D |
| GYTC8A -20~24 | 20~24 | 4 | 1 | 9.5×18.3 | 218 | 600/1500 | 300/1000 | 10D/20D |
| GYTC8A-26~30 | 26~30 | 5 | 0 | 9.5×18.3 | 218 | 600/1500 | 300/1000 | 10D/20D |
