Place of Origin:
CHINA
Brand Name:
Hochiry
Certification:
CE/ROHS/ISO9001/ANATEL
Model Number:
GJFJV Indoor Fiber Optical Cable
Contact Us

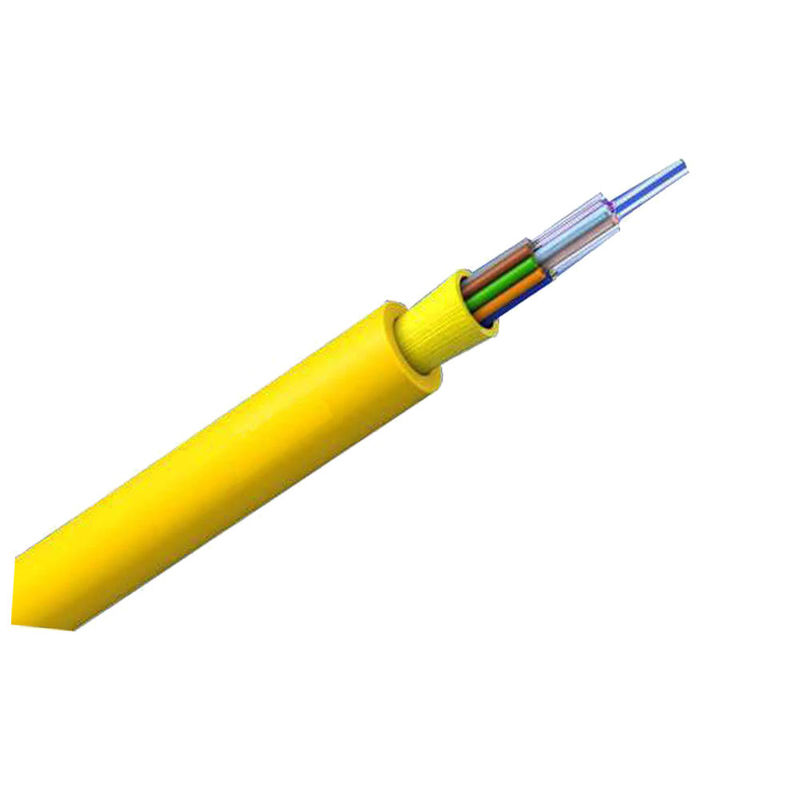

FRP Strength Member Indoor Tight Buffered Breakout Optical Fiber Cable

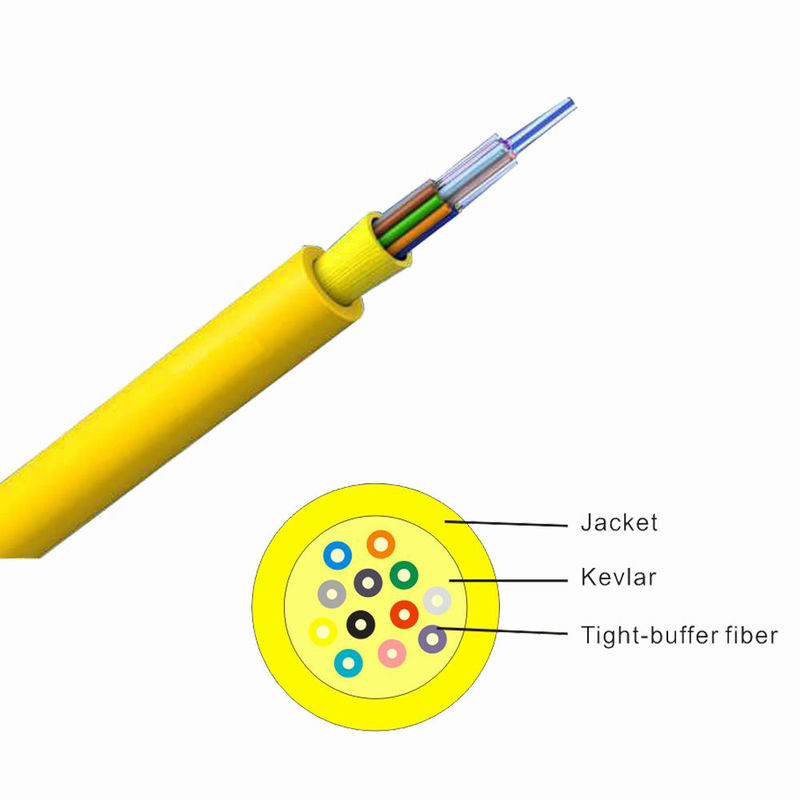

Multi-Purpose Break-Out cable use simplex cable (Φ900µm tight buffer fiber, aramid yarn as strength member) as subunit. A fiber reinforced plastic (FRP) Locates in the center of core as a non-metallic strength member. The subunits are stranded around the cable core. The cable is completed with a PVC or LSZH (Low smoke, Zero halogen, Flame-retardant) jacket.
Features on Indoor Tight Buffered Breakout Optical Fiber Cable:
Tight buffer fiber easy of stripping.
Tight buffer fiber have excellent flame-retardant performance.
The outer jacket material have many advantages such as anti-corrosion anti-water, anti-ultraviolet radiation, flame-retardant and harmless to environment etc.
Aramid yarn as strength member make cable have excellent tensile strength
Applications on Indoor Tight Buffered Breakout Optical Fiber Cable:
Indoor any purpose cable distribution.
Backbone distribution cable in a building.
Multi optical fiber jumper.
|
No. of cable
|
2
|
||
|
Fiber Model
|
G.657A2
|
||
|
Strength Member
|
Material
|
Aramid yarn
|
|
|
Tight buffer
|
Material
|
PVC
|
|
|
Diameter(±0.06)mm
|
0.9
|
||
|
Thickness(±0.03)mm
|
0.32
|
||
|
Outer Sheath
|
Material
|
LSZH
|
|
|
Thickness(±0.03)mm
|
0.45
|
||
|
Color
|
white
|
||
|
Cable Diameter(±0.2)mm
|
3.0
|
||
|
Cable Weight(±2)kg/km
|
7
|
||
|
Min. bending radius
|
Without Tension
|
10×Cable-φ
|
|
|
Under Maximum Tension
|
20×Cable-φ
|
||
|
Temperature range
(℃) |
Installation
|
-20~+60
|
|
|
Transport&Storage
|
-30~+70
|
||
|
Operation
|
-30~+70
|
||
Package and Delivery
