Flat LSZH FTTH Drop Fiber Optic Cable G657A Self Support Tight Buffer

LSZH FTTH Drop Fiber Optic Cable

G657A FTTH Drop Fiber Optic Cable

Flat Drop Fiber Cable

Place of Origin:

CHINA

Brand Name:

Hochiry

Certification:

CE ROHS

Model Number:

GJYXFCH-1B6-SM

Request A Quote

Flat LSZH FTTH Drop Fiber Optic Cable G657A Self Support Tight Buffer

Product Details

Model Number:

GJYXFCH Drop Fiber Optic Cable

Fiber Type:

G652D , G657A , G657A2

Cable Structure:

Self-support Tight Buffer

Strength Member:

FRP (Fiber Glass Reinforced Plastic)

Installation Tensile:

1200N

Fiber Amount:

1 Fiber

Jacket:

PVC LSZH PE

Payment & Shipping Terms

Minimum Order Quantity

100 Roll

Price

0.07USD/Meter

Packaging Details

1000M per Wooden Roll

Delivery Time

7-10 days

Payment Terms

T/T, Western Union, MoneyGram

Low Excess Loss 900um Steel Tube PLC Splitter 1x2 Without Connector

Get Best Price

ODM Passive Fiber Optic Cable Splitter 1x2 1x4 1x8 1x16 1x32 1x64 PLC Splitter

Get Best Price

PSM 1X16 Fiber Optic PLC Splitter 0.9mm Optical Steel Tube Mini Type

Get Best Price

EPON GPON Fiber Optic PLC Splitter 1 * 4 Low insertion loss with connector

Get Best Price

86-180-25320086

info@szhodas.com

86-0755-5320086

Contact Now

Product Description

Ftth Flat Drop Indoor Outdoor Fiber Optic Cable G657A LSZH Fibra Optica Drop Cable

Description:

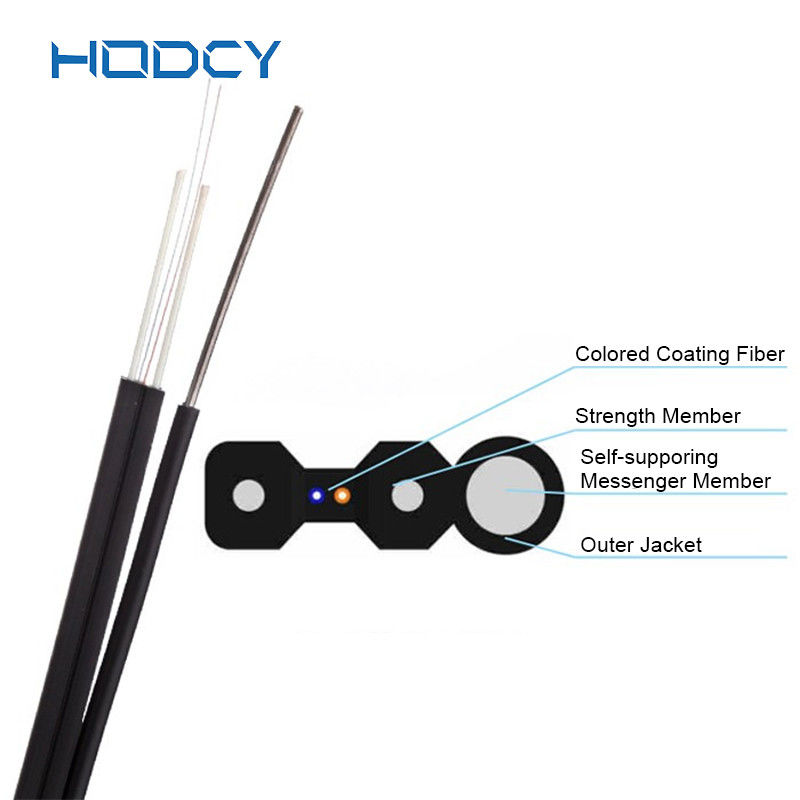

The optical fiber unit is positioned in the center.
Two parallel Fiber Reinforced Plastics (FRP) are placed at the twp sides.
Then the cable is completed with a black or white color LSZH sheath.

Features:

Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property
Two parallel strength members ensure good performance of crush resistance to protect the fiber
Simple structure, light weight and high practicability
Novel flute design, easily strip and splice, simplify the installation and maintenance
Low smoke, zero halogen and flame retardant sheath
Simple structure, light weight and high practicability

Application:

Used in indoor cabling, especially used for FTTH
Used as access building cable

Cable construction details

No.of fiber	1F-4F
Gross weight	8.5kg/km
SM fiber	Fiber type	9/125	MFD	8.6～9.8um
	Cladding diameter	125±0.7um	Cladding non-circularity	≤0.7%
	Coating	245±5um	Fiber color	standard spectrum
	diameter	245±5um	Fiber color	standard spectrum
Strength member	Material	FRP / Steel wire	Color	white
Strength member	Diameter	0.5mm	Qty	2
Out sheath	Material	LSZH	Color	White / Black
Out sheath	Diameter	2.0 (±0.1) *3.0mm (±0.1)	Thickness	≧0.5mm

Cable mechanical and environment characteristics

Cable code	Fiber	Cable diameter	Cable	Tensilse	Crush	Bedning
	Count	mm	weight	Strength	Resistance	Radius
			Kg/km	Long/Short term	Long/Short term	Dynamic/Static
				N	N	mm
GJXFH-1	1	(2.0±0.2)×(3.0±0.2)	8	30/60	300/1000	15/30
GJXFH-2	2	(2.0±0.2)×(3.0±0.2)	8.5	30/60	300/1000	15/30
GJXFH-4	4	(2.0±0.2)×(3.0±0.2)	10	30/60	300/1000	15/30
GJXH-1	1	(2.0±0.2)×(3.0±0.2)	9	30/60	300/1000	15/30
GJXH-2	2	(2.0±0.2)×(3.0±0.2)	9.5	30/60	300/1000	15/30
GJXH-4	4	(2.0±0.2)×(3.0±0.2)	10	30/60	300/1000	15/30

Fiber characteristics

Fiber style	Unit	SM G652D	MM 50/125	OM3-150
Condition	mm	1310/1550	850/1300	850/1300
Attenuation	dB/km	≤0.36/0.23	≤3.0/1.0	≤3.0/1.0
Cladding diameter	um	125±1	125±1	125±1
Cladding non-circularity	%	≤1.0	≤1.0	≤1.0
Coating diameter	um	242±7	242±7	242±7

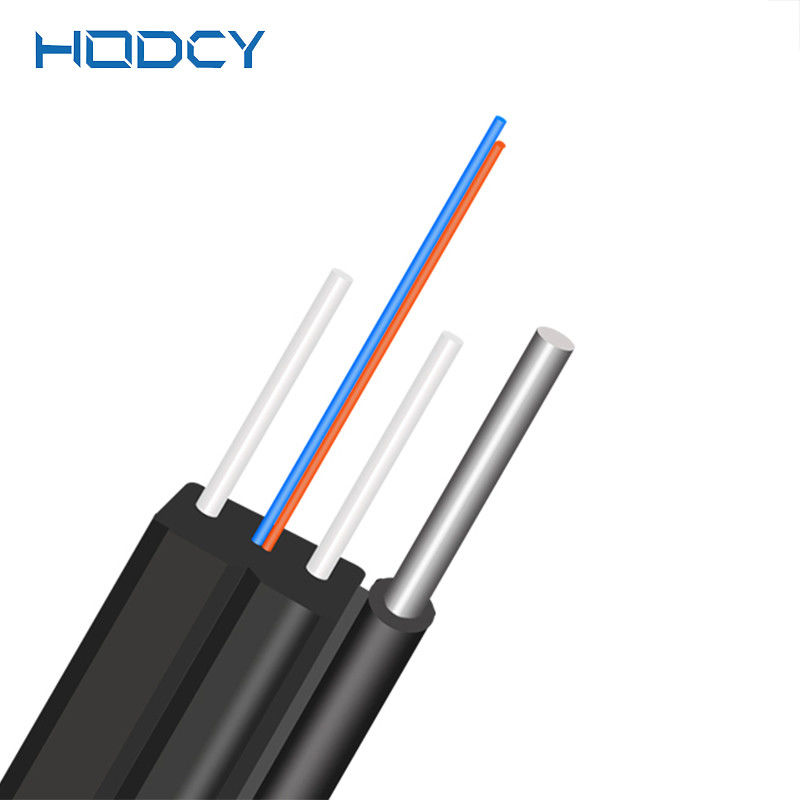

Flat LSZH FTTH Drop Fiber Optic Cable G657A Self Support Tight Buffer 0

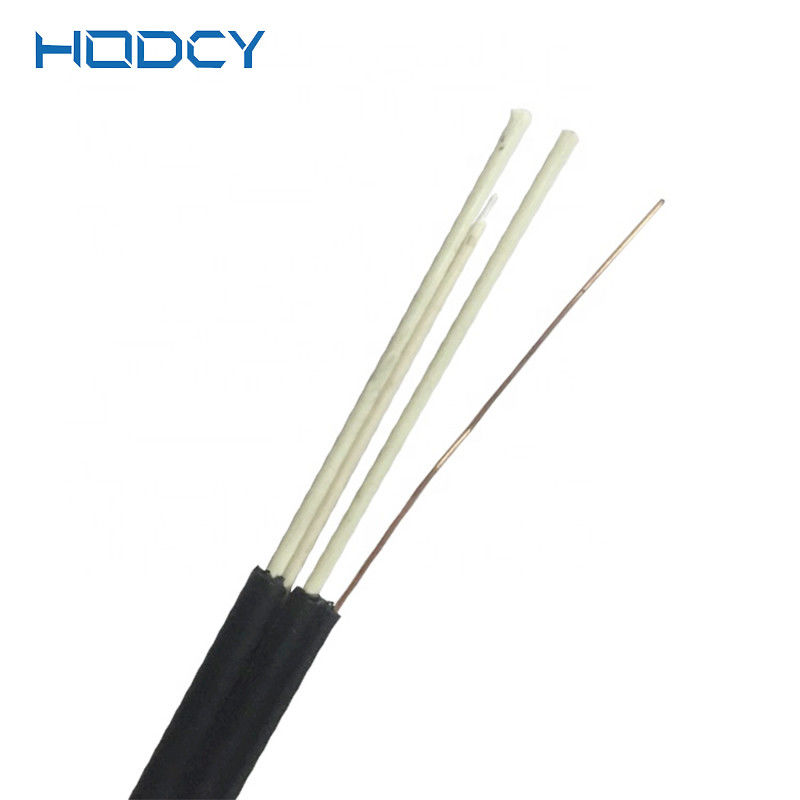

Flat LSZH FTTH Drop Fiber Optic Cable G657A Self Support Tight Buffer 1
