Place of Origin:
CHINA
Brand Name:
Hochiry
Certification:
CE ROHS
Model Number:
HDX-10A
Contact Us

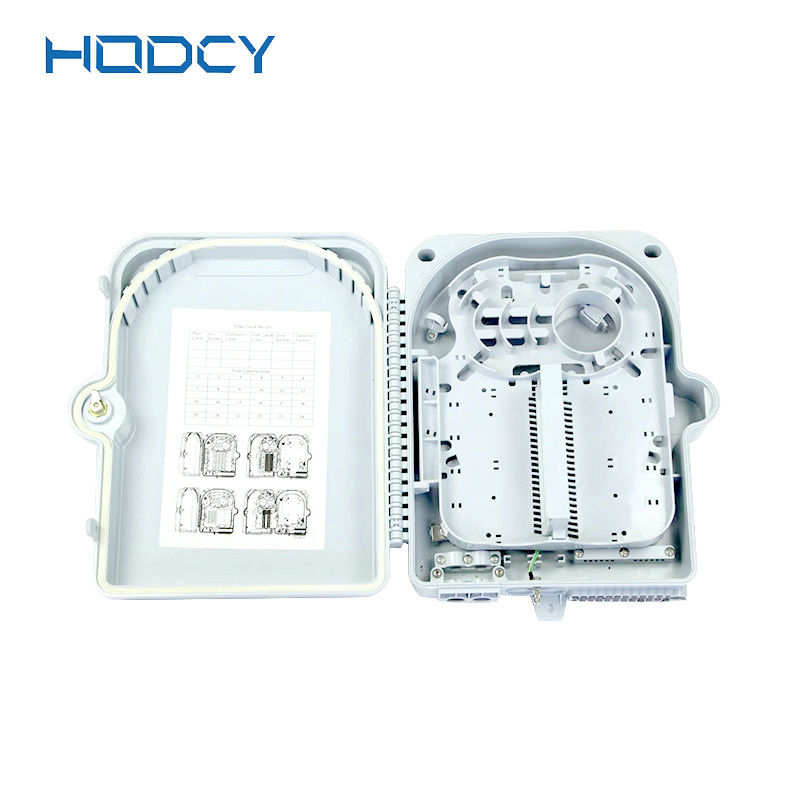

1.Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.
2.Cable, pigtails, patch cords are running through own path without disturbing each other, cassette type SC adapter installation, easy maintenance.
3.Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.
4.Cabinet can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses.
Water-proof design with IP-66 Protection level.
Integrated with splice cassette and cable management rods.
Manage fibers in a reasonable fiber radius condition.
Easy to maintain and extend the capacity.
Fiber bend radius control more than 40mm.
Suitable for the fusion splice or mechanical splice.
1*16 /1*8 Modular Splitter can be installed as an option.
Efficient cable management.
6port 24 ports cable entrance for drop cable.
|
Shape
|

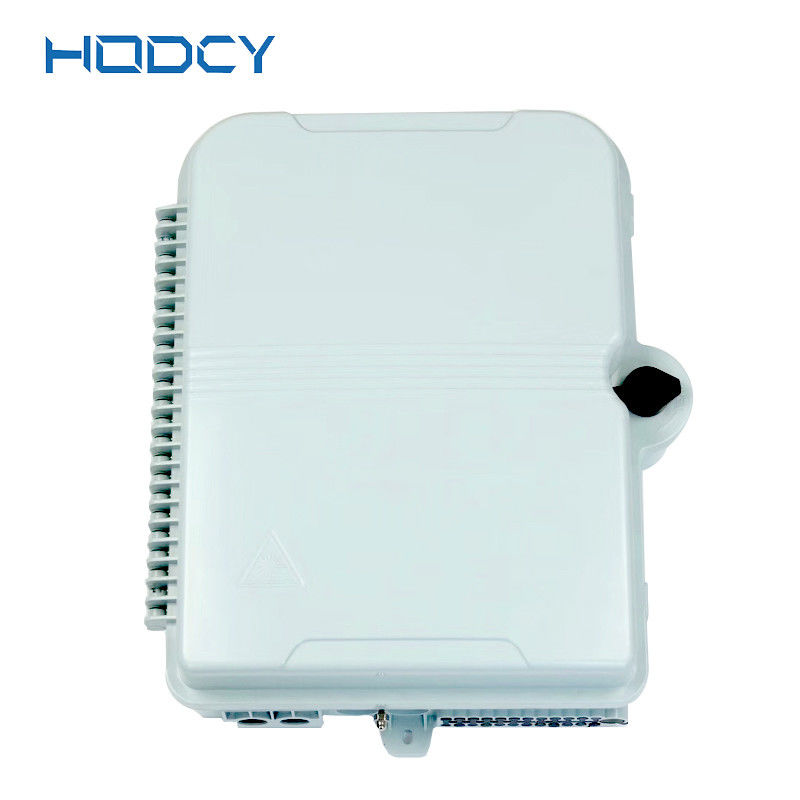

Total enclosed structure, be in nice shape
|
|
size320
|
320mm(H)*240mm(W)*100mm(D)
|
|
Weight
|
1.5KG
|
|
Material
|
PC+ABS
|
|
Material characteristic
|
1.wet-proof, water-proof, dust-proof, protection level up to IP65
2.Construction-lightweight plastic offers strength
3.Resistance to chemical and U.V attack4.Wall mounting or pole mounting. |
|
Specification
|
HDS-24A
|
HDS-16C
|
HDS-16D
|
|
Material
|
PC+ABS
|
||
|
Entry ports
|
1 Midspan+1 Cable gland( total 3 ports)
|
||
|
Outlet ports
|
24
|
24
|
16
|
|
Cores
|
24
|
16
|
16
|
|
Color
|
Grey black or white(optional)
|
||
|
Ip degree
|
65
|
65
|
65
|
|
Adapter installation
|
24 (SC LC )
|
/
|
16 (SC LC )
|
|
PLC installation
|
support(1x8 or 1x16)
|
support(1x8 or 1x16)
|
support(1x8 or 1x16)
|
|
PLC type
|
mini type
|
insert type
|
insert type/mini type (alternative)
|
|
inlet cable dimension
|
midspan(12.5mm)/cable gland(12mm)
|
||
|
outlet cable
|
2x3 drop cable & 2.0/3.0 round cable
|
||
|
Installation method
|
wall mounting or pole mounting
|
||
|
Dimension
|
317x237x101mm
|
||
|
No. of splice tray
|
/
|
||
widely used in FTTH access network.
Telecommunication Networks
CATV Networks
Data communications Networks
Local Area Networks
