Place of Origin:
CHINA
Brand Name:
Hochiry
Certification:
CE ROHS
Model Number:
HDX-09B
Contact Us
1. ABS material used ensures the body strong and light.
2. Water-proof design for outdoor uses.
3. Easy installations: Ready for wall mount – installation kits provided.
4. Adapter slots used – No screws and tools needed for installing adapters.
5. Ready for splitters: designed space for adding splitters.

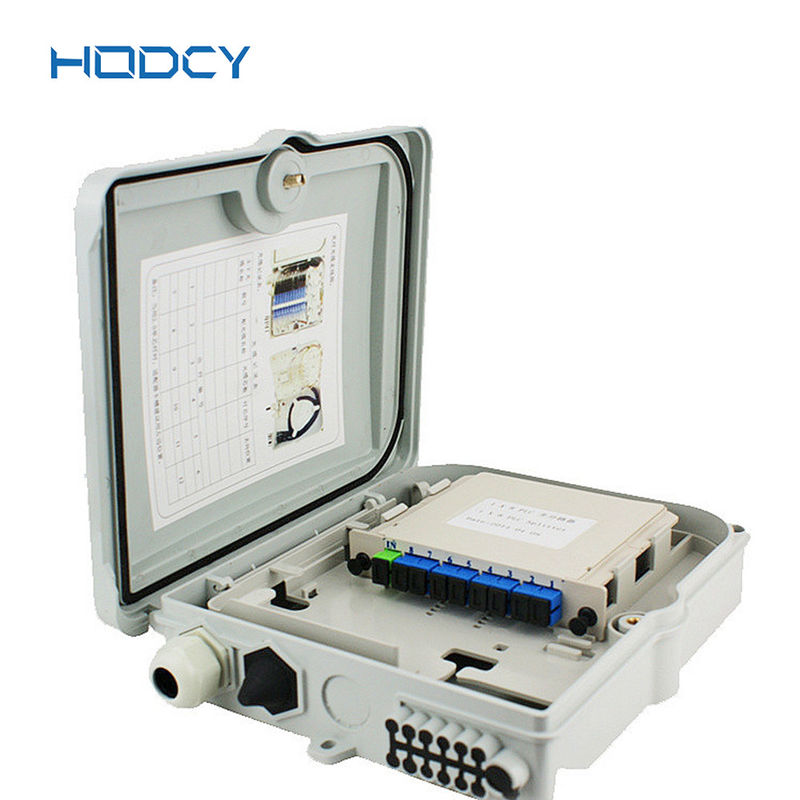

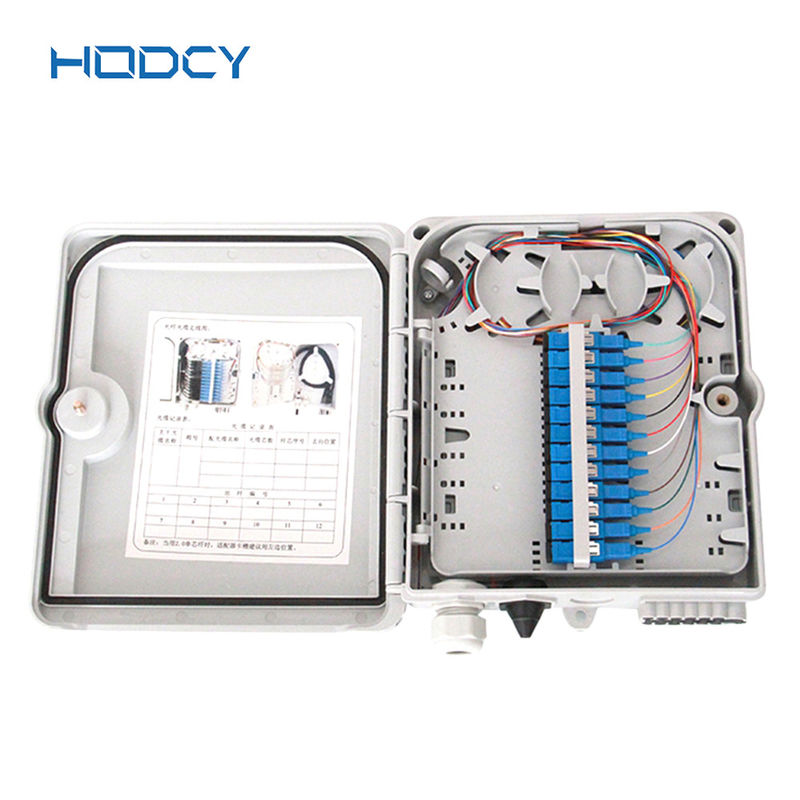

6. Space saving! Double-layer design for easier installation and maintenances:
7. Lower layer for splitters and over length fiber storage.
8. Upper layer for splicing, cross-connecting and fiber distribution.
9. Cable fixing units provided for fixing the outdoor optical cable.
10. Protection Level: IP65.
11. Accommodates both cable glands as well as tie-wraps
12. Lock provided for extra security
Accessories
1. Wall mounting kits : 4 pieces
2. Screws : 4 pieces
3. Cable tie: 10 pieces
4. Heat shrink protective sleeves: 16 pieces
5. Key :1 piece
widely used in FTTH access network.
Telecommunication Networks
CATV Networks
Data communications Networks
Local Area Networks
| Dimensions and Capability | |
| dimensions(W*H*D) | 270mm*220mm*100mm |
| Adapter Capacity | 16xSC;16xLCDX;1x16 PLC Splitter |
| Number of Cable Entrance/Exit | 2/16 |
| Optional Accessories | Adapters, pigtails |
| Insert Loss | ≤0.2dB |
| UPC Return Loss | ≥50dB |
| APC Return Loss | ≥60dB |
| Weight | 1.8KG |
| Shipping Information | |
| Pakage Contens | Distribution box, 1 unit; Keys for lock, 2keys |
| Wall mount installation accessories,1 set | |
| Package dimensions(W*H*D) | 270mm*200mm*100mm |
| Weight | 1.8KG |
