Place of Origin:
CHINA
Brand Name:
Hochiry
Certification:
CE ROHS
Model Number:
HDX-09A
Contact Us
Feature:
•2 port for common cable and 24 port for ftth drop cable.
•Provide two options for the slots,can contain 1*16 plug-in cassette splitter or 24 pcs sc adapters and pigtails.
•Function of shock resistance and waterproof.
•The top cap opening angle is 180°0.
•Economic and exquisite,let the construction simple and convenient.
| Product name | ftth terminal box | IP rate | IP65 |
| Installation type | pole or wall mounting | Product size | 340*280*105 mm |
| Material | ABS | color | white (or black) |
| Operation Temperature | -40℃~60℃ | Port | 1 inlet and 24 outlet |
| Optional accessory | pole mounting ring, sc adapter,fiber pigtails or plc splitter | weight | 1.2kg |

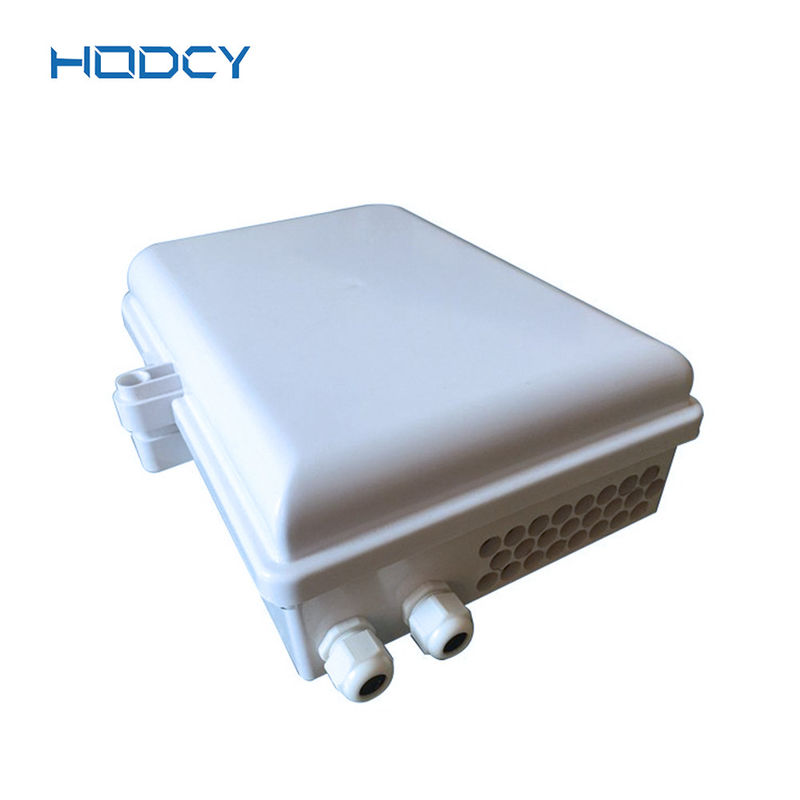

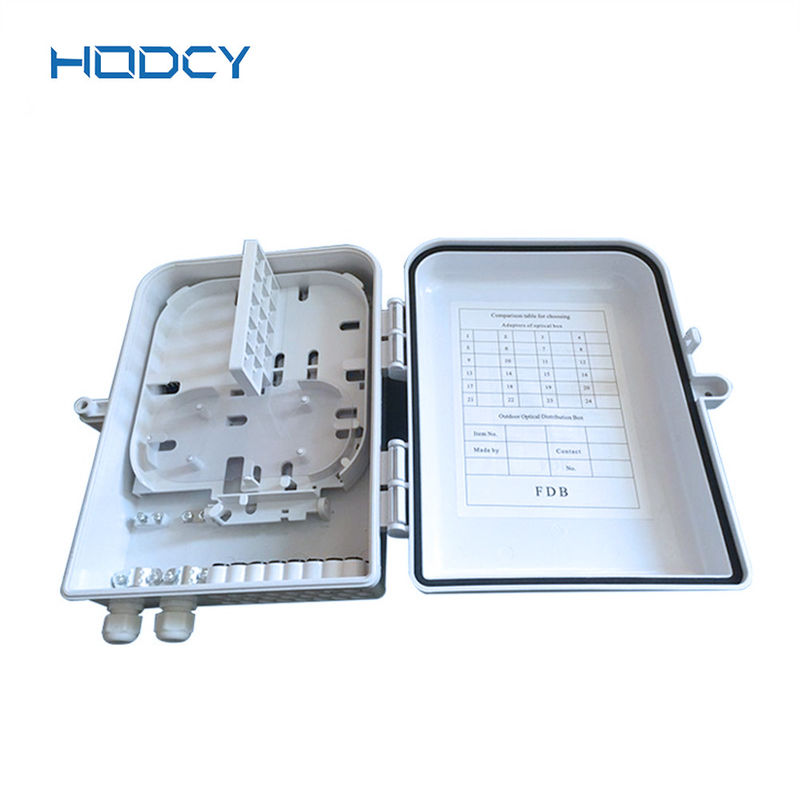

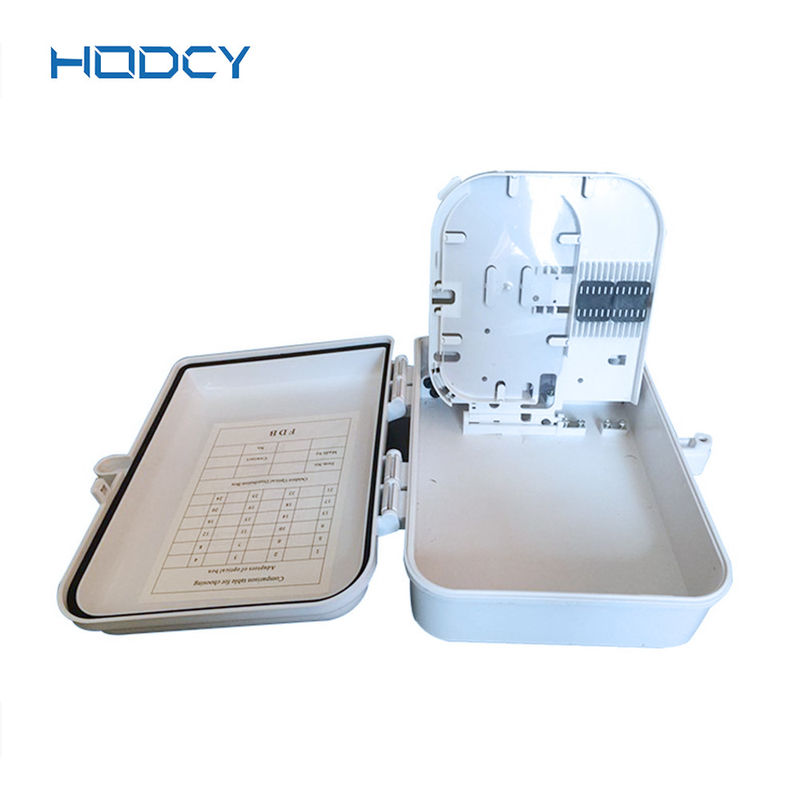

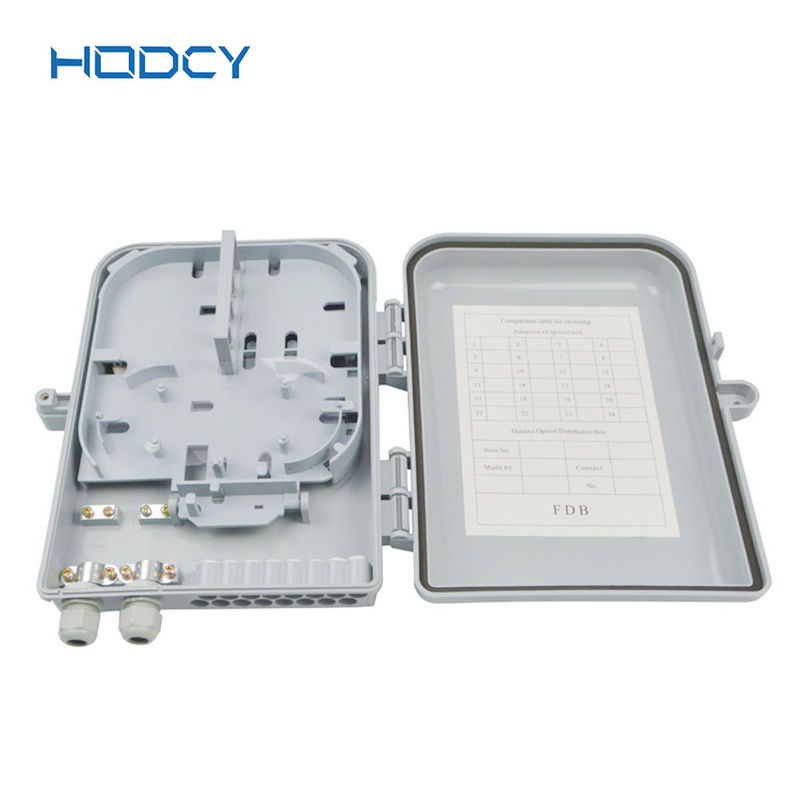

Details Pictures:
widely used in FTTH access network.
Telecommunication Networks
CATV Networks
Data communications Networks
Local Area Networks
