Place of Origin:
CHINA
Brand Name:
Hochiry
Certification:
CE/ROHS/ISO9001/ANATEL
Model Number:
GYTC8A/GYTC8S fiber optic cable outdoor
Contact Us

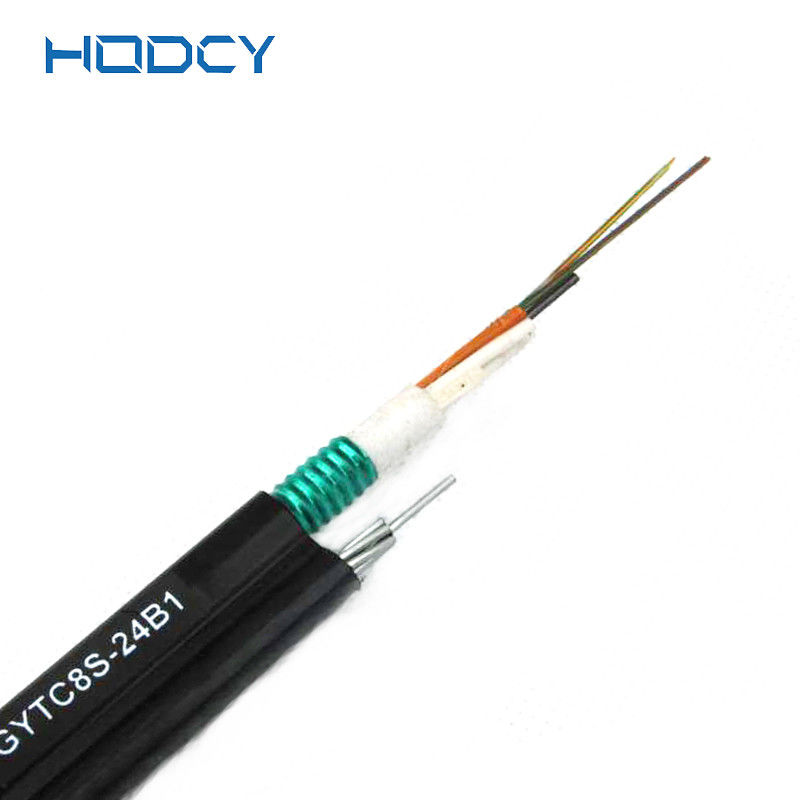

Figure 8 Self-Supporting Armored GYTC8A Fiber Optic Cable Outdoor
Description:

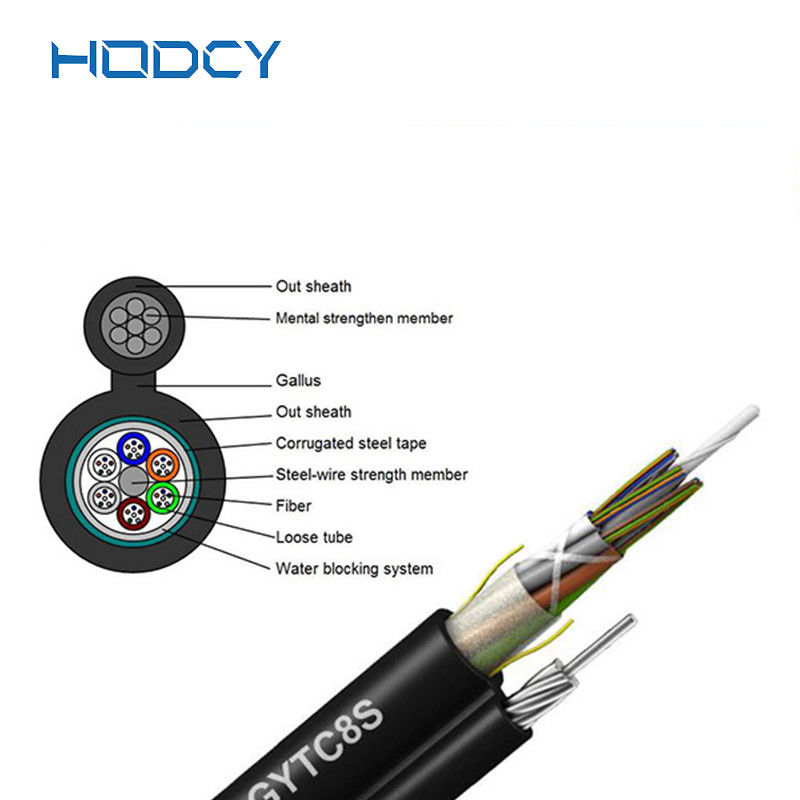

The structure of GYTC8AS cable is to put 250µm optical fiber into loose tube made of high modulus material, which is filled with waterproof compound. The cable core is wrapped in a plastic-coated steel and integrated with the steel strand into an 8-figure polyethylene sheath. Figure-8 self-supporting structure provide high tensile strength and enables easy and cost saving aerial installations.
Features:
Technical Parameters:
| Cable Type | Fiber Count | Tubes | Fillers | Cable Diameter | Cable Weigh | Long/Short Term | Long/Short Term | Static/Dynamic |
| mm | kg/km | N | N/100mm | mm | ||||
| GYTC8A-2~6 | 2~6 | 1 | 4 | 9.5×18.3 | 218 | 600/1500 | 300/1000 | 10D/20D |
| GYTC8A-8~12 | 8~12 | 2 | 3 | 9.5×18.3 | 218 | 600/1500 | 300/1000 | 10D/20D |
| GYTC8A-14~18 | 14~18 | 3 | 2 | 9.5×18.3 | 218 | 600/1500 | 300/1000 | 10D/20D |
| GYTC8A -20~24 | 20~24 | 4 | 1 | 9.5×18.3 | 218 | 600/1500 | 300/1000 | 10D/20D |
| GYTC8A-26~30 | 26~30 | 5 | 0 | 9.5×18.3 | 218 | 600/1500 | 300/1000 | 10D/20D |
