Place of Origin:
CHINA
Brand Name:
Hochiry
Certification:
CE/ROHS/ISO9001/ANATEL
Model Number:
GYTXW Fiber Cable
Contact Us
Outdoor Double Steel Wire Armored Aerial GYTXW Fiber Cable
Description:

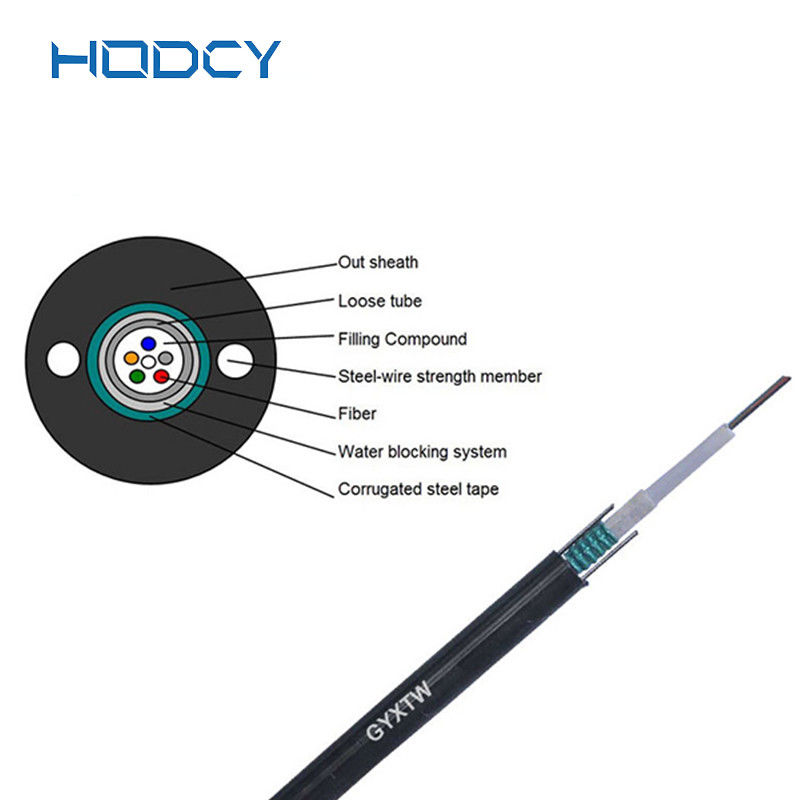

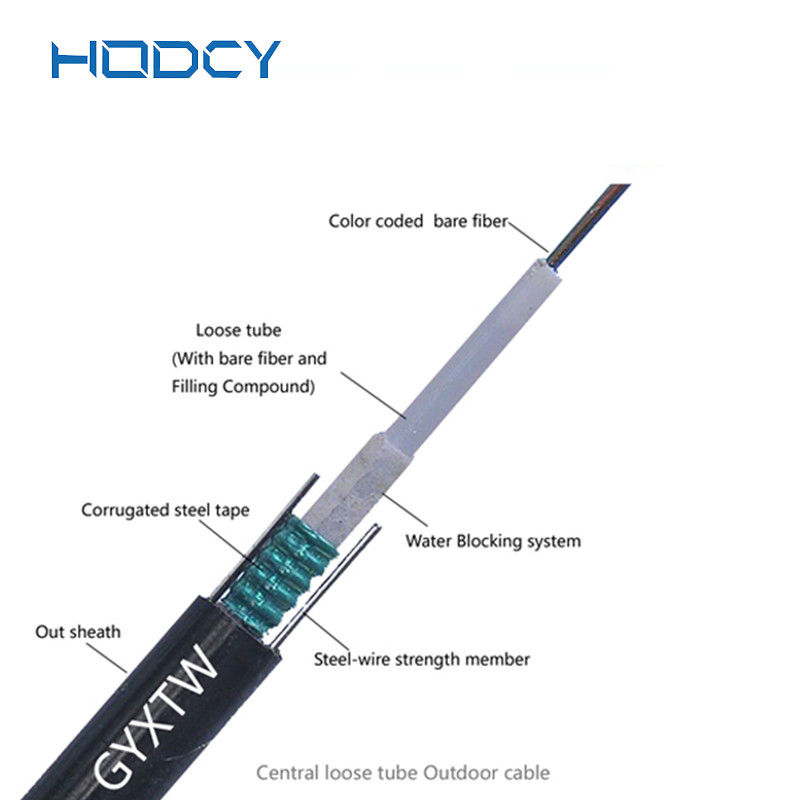

Double parallel FRP or steel wires with good compressive properties and protect optical fibers.
Simple in structure, light in weight and universally used.
A single steel wire or stranded wire with additional reinforcing elements to make the cable with good anti-tensile properties.
Unique groove design, easy to be peeled, easy to be connected,installed and maintenance.
LSZH sheath is good for environmental protection.
Features:
Technical Parameters:
| Cable Type | Fiber Count | Cable Diameter | Cable Weight | Tensile Strength | Crush Resistance | Bending Radius |
| Long/Short Term | Long/Short Term | Static/Dynamic | ||||
| mm | kg/km | N | N/100mm | mm | ||
| GYXS/GYXTW-2~12 | 2~12 | 10 | 105 | 600/1500 | 300/1000 | 10D/20D |
| GYXS/GYXTW-2~12 | 2~12 | 10.6 | 124 | 1000/3000 | 1000/3000 | 10D/20D |
| GYXS/GYXTW-14~24 | 14~24 | 12.5 | 149 | 1000/3000 | 1000/3000 | 10D/20D |
| GYXS/GYXTW-26~36 | 26~36 | 14 | 190 | 1000/3000 | 1000/3000 | 10D/20D |
| GYXS/GYXTW-38~48 | 38~48 | 15 | 216 | 1000/3000 | 1000/3000 | 10D/20D |
