110kV All Dielectric Self Supporting Cable AT Outer Sheath 200m Span PE Jacket

Over 110kV AT Outer Sheath Fiber Optic Cable 200 Meters Span All-Dielectric Self-Support ADSS Fiber Optic Cable

Description:

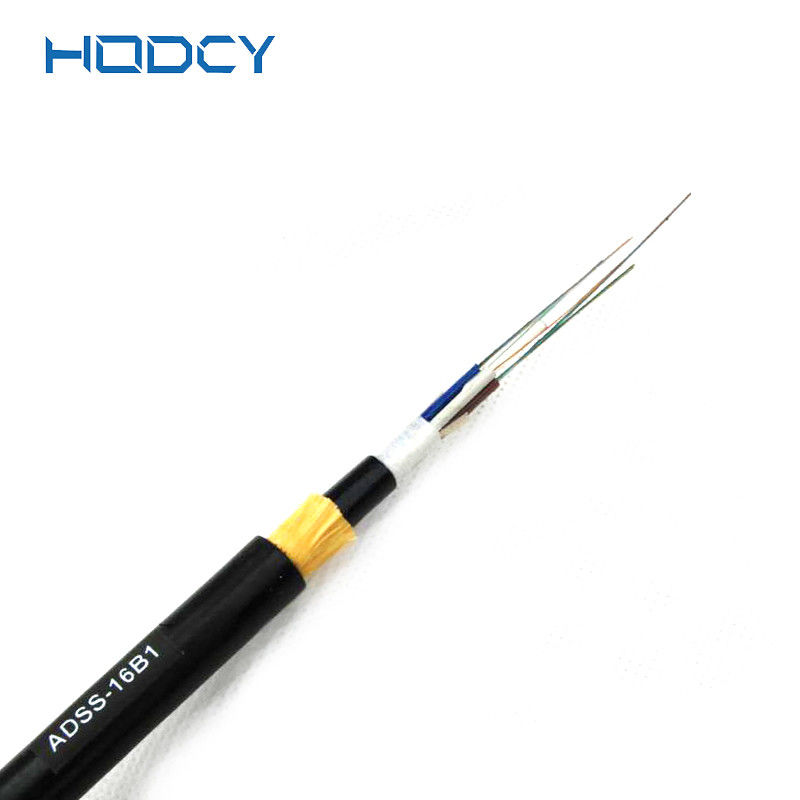

ADSS cable is loose tube stranded structure. The optical fiber is 250µm, the loose tube is made of high modulus plastic, which is filled with waterproof compound. In the center of the cable core is a FRP strength member,The loose tube (and the filling rope) is twisted around the central reinforcement core to form a compact and round cable core, and the gap in the cable core is filled with a water blocking filler. The outer of the cable is a polyethylene (PE) inner sheath,then twisted high tensile strength aramid, the outermost is the electric tracking (AT) outer sheath.

Features:

ADSS cable complies with Standard IEEE P 1222 as well as IEC 60794-1.
Can be installed without shutting off the power
Excellent AT performance, The maximum inductive at the operating point of AT sheath can reach25kV
Light weight and small diameter reducing the load caused by ice and wind and the load on towersand backprops
Large span lengths and the largest span is over 1000m
Good performance of tensile strength and temperature
The design life span is 30 years

Application:
The actual status of overhead power lines is taken into full consideration when ADSS cable is being designed. For overhead power lines under 110kV, PE outer sheath is applied. FOR power lines equal to or over 110kV, AT outer sheath is applied. The dedicate design of aramid quantity and stranding process can satisfy the demand on various spans.

Technical Parameters:

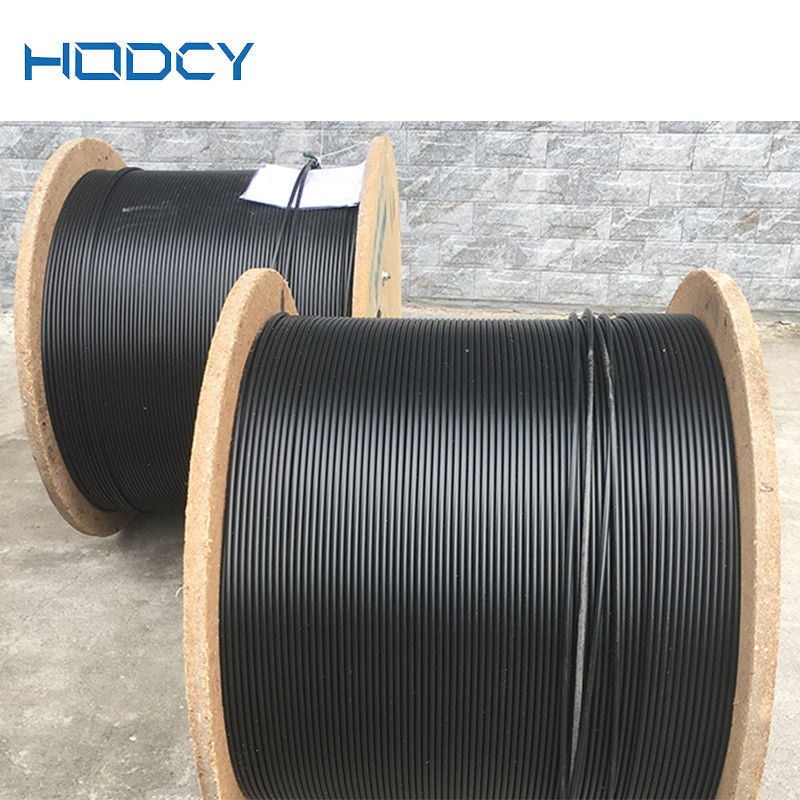

Package and Delivery
