250μm GYTA53 G652D Single Mode Armored Fiber Optic Cable 2-288cores

Underground G652D Single Mode Armoured Optical Fiber Cable GYTA53 Fiber Optic Cable Outdoor

Description:

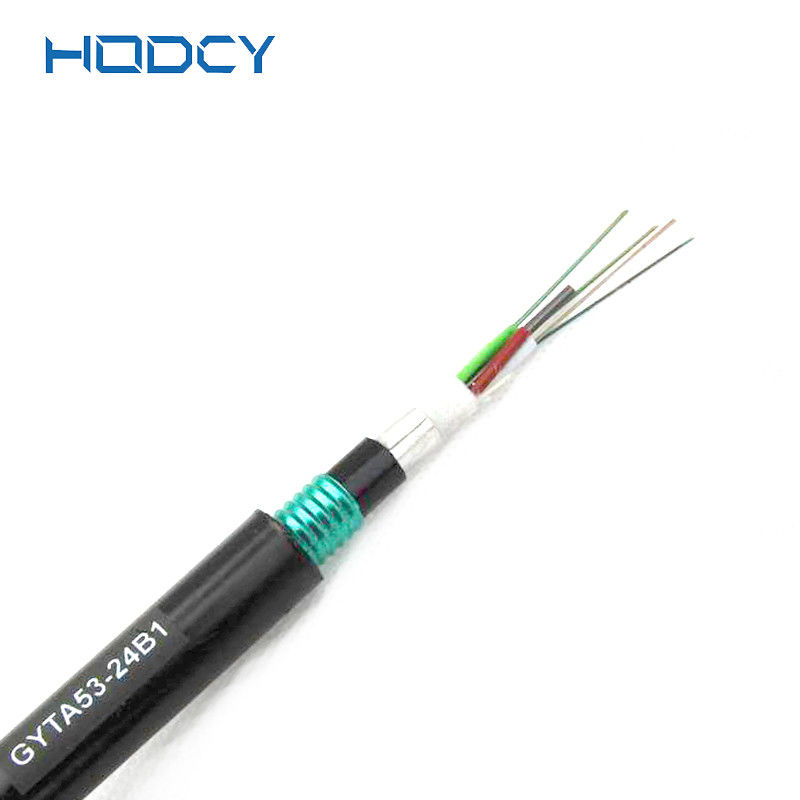

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. The cable is completed with a polyethylene (PE) sheath.

Features:

GYTA53 cable complies with Standard YD/T 901-2001as well as IEC 60794-1..
Good mechanical and temperature performance
High strength looes tube that is hydrolysis resistant
Special tube filling compound ensure a critical protection of fiber
Specially designed compact structure is good at preventing loose tubes from shrinking
Crush resistance and flexibility
Aerial Duct laying methods
PE sheath protects cable from ultraviolet radiation
The following measures are taken to ensure the cable watertight:
   Steel wire used as the central strength member
   Loose tube filling compound
   100% cable core filling
   APL moisture barrier
   PSP enhancing moisture-proof

Technical Parameters:

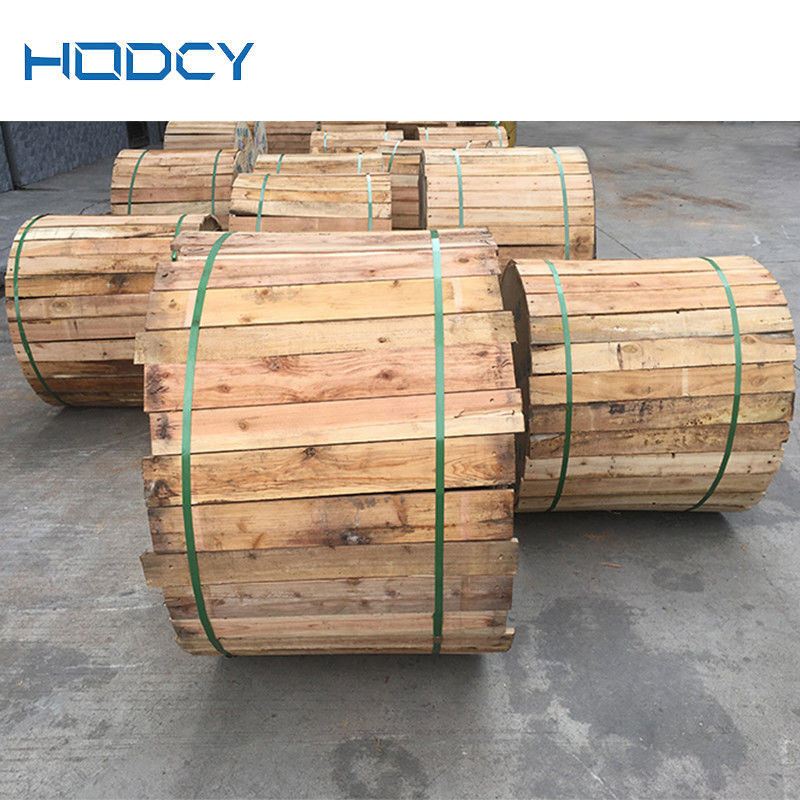

Package and Delivery
