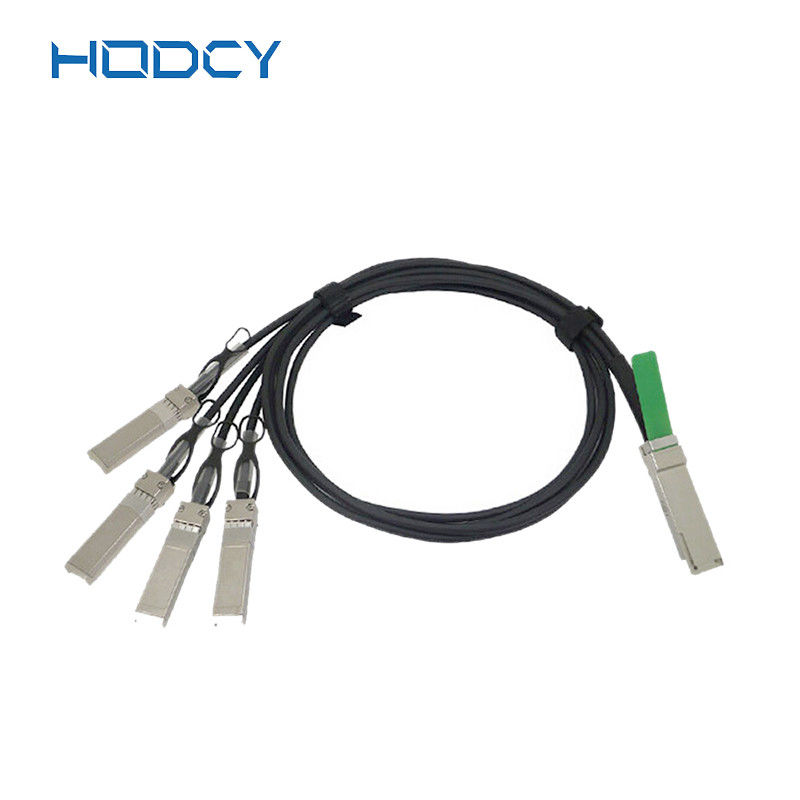

Optical Fiber 40G QSFP+TO SFP+AOC Active Optical Cable Fiber Optic Cable for Data Center
Description
QSFP+ active optic cables are a high performance, low power consumption, long reachinterconnect solution supporting InfiniBand QDR/DDR/SDR,12.5G/10G/8G/4G/2G fiber channel ,PCIe and SAS. It is compliant with the QSFP MSA and IEEE P802.3ba. The Olink QSFP AOC is an assembly of 4 full-duplex lanes, where each lane iscapable of transmitting data at rates up to 11.3Gb/s, providing an aggregated rate of 45.2Gb/s. The Olink QSFP+AOC is one kind of parallel transceiver which provides increased port density and total system cost savings.
Features:
Four-channel full-duplex active optical cable
Transmission data rate up to 11.3Gbit/s per channel
Reliable VCSEL array technology using multimode fiber
Available in standard lengths of 3, 5, 10, 15, 20, 30, 50,100m
Low power consumption <1.5W
Operating case temperature 0°C to +70°C
3.3V power supply voltage
RoHS 6 compliant
Hot Pluggable QSFP form factor
Applications
Infiniband QDR/DDR/SDR
Datacenter
40G Ethernet
4G/8G/10G Fibre Channel
Order information
| P/N | Parameters |
| RQSFP-40G-AOC1M | QSFP-40G AOC-1m;DDM;0ºC ~ +70ºC/-40ºC ~ +85ºC |
| RQSFP-40G-AOC2M | QSFP-40G AOC-2m;DDM;0ºC ~ +70ºC/-40ºC ~ +85ºC |
| RQSFP-40G-AOC3M | QSFP-40G AOC-3m;DDM;0ºC ~ +70ºC/-40ºC ~ +85ºC |
Application:
Note: Maximum Bandwidths of Different Multimode Fibers
OM1 – 62.5/125um – 10GBit up to 33 meters (108 feet)
OM2 – 50/125um – 10GBit up to 82 meters (270 feet)
OM3 – 50/125um, Laser Optimized – 10GBit up to 300 meters (984 feet)
OM4 – 50/125um, Laser Optimized – 10GBit up to 550 meters (1805 feet)
