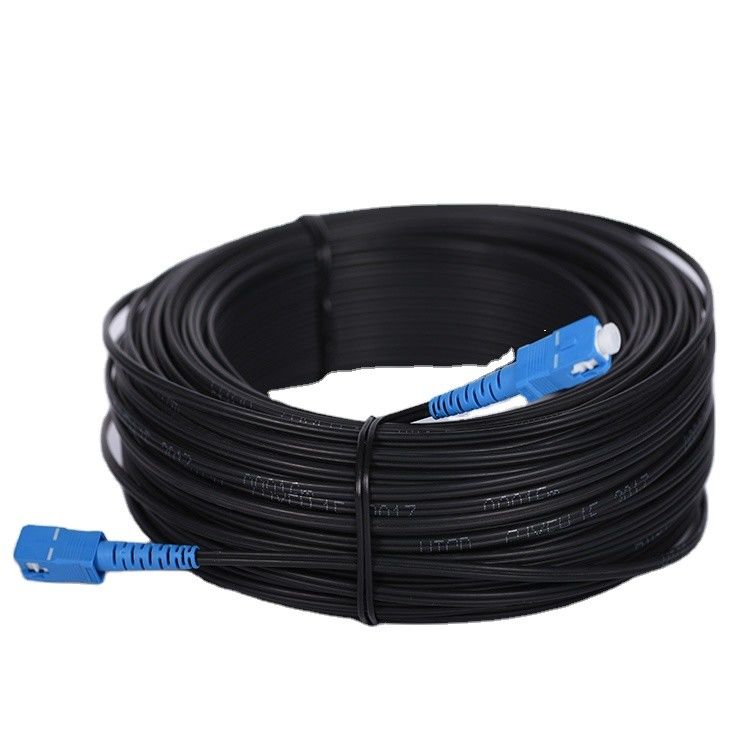

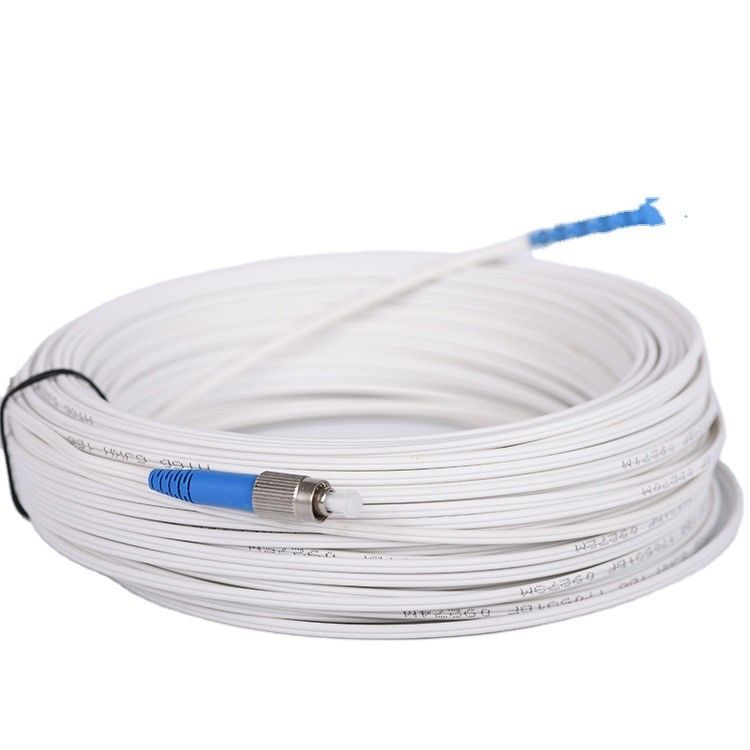

GJYXFCH FTTH Drop Cable Self Supported Tube LSZH Jacket Cable optics fibers G652D G657A1 G657A2 drop cable

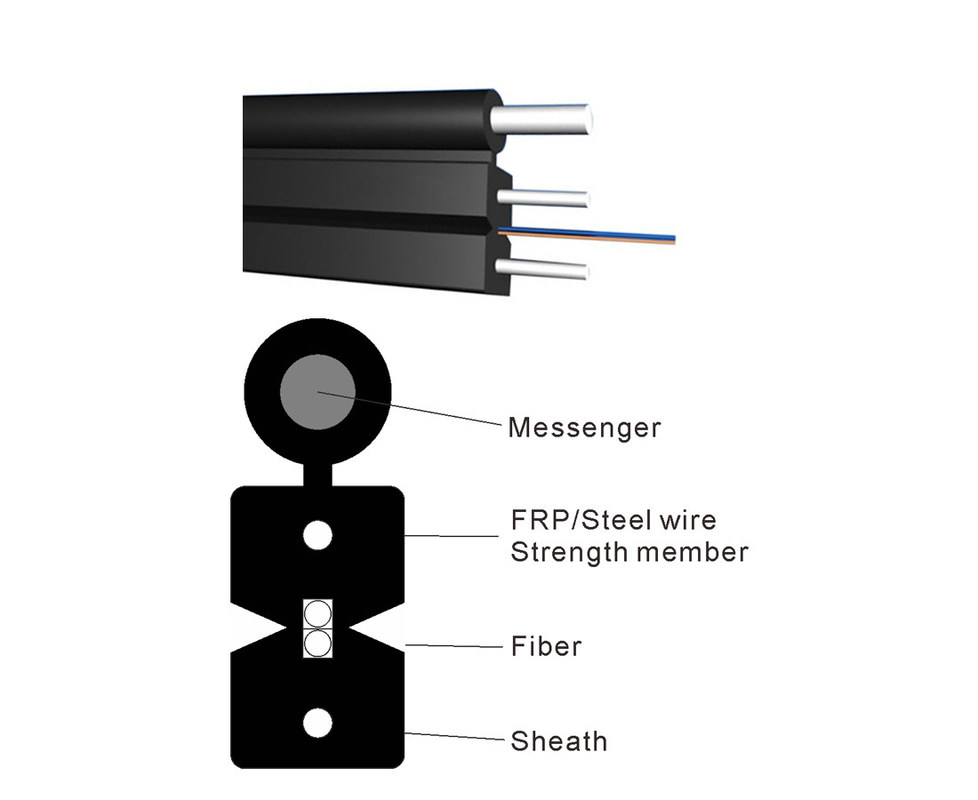

FTTH Cable directly connected to their homes, their bandwidth, wavelength and transmission technology type are not restricted. The optical fiber unit id positioned in the center. Two parallel strength member are placed at the two sides, then the cable is completed with black LSZH sheath.
Cable construction details:
| No.of fiber | 1F-4F | |||
| Gross weight | 8.5kg/km | |||
| SM fiber | Fiber type | 9/125 | MFD | 8.6～9.8um |
| Cladding diameter | 125±0.7um | Cladding non-circularity | ≤0.7% | |
| Coating | 245±5um | Fiber color | standard spectrum | |
| diameter | ||||
| Strength member | Material | FRP / Steel wire | Color | white |
| Diameter | 0.5mm | Qty | 2 | |
| Out sheath | Material | LSZH | Color | White / Black |
| Diameter | 2.0 (±0.1) *3.0mm (±0.1) | Thickness | ≧0.5mm | |
Cable mechanical and environment characteristics
| Tensile strength | Long term(N) | 40N |
| Short term(N) | 80N | |
| Crush load | Long term(N) | 500N/100mm |
| Short term(N) | 1000N/100mm | |
| Bending radius | Dynamic | 20D |
| Static | 10D | |
| Temperature | -20℃～+70℃ | |
Fiber characteristics:
| Fiber style | Unit | SM G652D | MM 50/125 | OM3-150 |
| Condition | mm | 1310/1550 | 850/1300 | 850/1300 |
| Attenuation | dB/km | ≤0.36/0.23 | ≤3.0/1.0 | ≤3.0/1.0 |
| Cladding diameter | um | 125±1 | 125±1 | 125±1 |
| Cladding non-circularity | % | ≤1.0 | ≤1.0 | ≤1.0 |
| Coating diameter | um | 242±7 | 242±7 | 242±7 |
