48v1000ah (50kwh) Lifepo4 Battery Solar Energy Storage System With RS485 CAN BMS

48v1000ah (50kwh) Lifepo4 Battery Solar Energy Storage System With RS485 CAN BMS

48v1000ah Solar Energy Storage System

RS485 CAN BMS Solar Energy System

LCD Display Solar Energy Storage System

Place of Origin:

CHINA

Brand Name:

Hochiry

Certification:

CE ROHS FCC

Contact Us

Request A Quote
48v1000ah (50kwh) Lifepo4 Battery Solar Energy Storage System With RS485 CAN BMS
Product Details
Product Name:
Solar Energy Systems
Battery Type:
LiFePO4
Cycle Life:
3000cycle/6000cycle
Protection:
Built-in Smart BMS
Capacity:
5Kwh 10Kwh 20Kwh 30Kwh
Communication Port:
RS232, RS485, CAN
Application:
Solar Energy Storage Systems/Electric Power System
Payment & Shipping Terms
RELATED PRODUCTS
Good price 48v1000ah (50kwh) Lifepo4 Battery Solar Energy Storage System With RS485 CAN BMS online

48v1000ah (50kwh) Lifepo4 Battery Solar Energy Storage System With RS485 CAN BMS

Get Best Price
Good price Solar System 30kW 150kW 300kW Hybrid Solar Panel Kit System 30KW Complete solar system online

Solar System 30kW 150kW 300kW Hybrid Solar Panel Kit System 30KW Complete solar system

Get Best Price
Good price Off Grid 10kW Solar Energy System Energy Storage Solar PV Panel With Tempered Glass online

Off Grid 10kW Solar Energy System Energy Storage Solar PV Panel With Tempered Glass

Get Best Price
Good price Portable Solar Generator Power Station online

Portable Solar Generator Power Station

Get Best Price
Contact Us
86-180-25320086
info@szhodas.com
86-0755-5320086
Contact Now
Product Description


48v1000ah (50kwh) Lithium Battery Solar Energy Storage System Lifepo4 Battery With RS485 CAN BMS

Product Description
48v1000ah (50kwh) Lifepo4 Battery Solar Energy Storage System With RS485 CAN BMS 0
Product Model
LFP-512200-10
LFP-512200-20
LFP-512200-30
LFP-512200-50
Product Power
10Kwh
20Kwh
30Kwh
50Kwh
Nominal voltage
51.2V
51.2V
51.2V
51.2V
Nominal capacity
200Ah
400Ah
600Ah
1000Ah
Cell type
LiFePO4 Battery ( Lithium iron Phosphate Battery )
Standard charge voltage
58.4V
Max charge current
80A(Single Pack)
Discharge cut-off voltage
40V
Max discharge current
200A
Display
LCD
Communication interface
RS232 / RS485 / CAN
Cycle life
≥6000 cycles
Charge temperature range
0~55℃
Discharge temperature range
-20°C to + 60°C
Certification
CE, MSDS, UN38.3 etc.
Dimensions
690*560*290mm
690*560*450mm
690*560*610mm
690*560*930mm
Weight
About 91Kg
About 167Kg
About 243Kg
About 395Kg
Optional Accessories
Movable Base / M8 Parallel Line(30cm) / RS485 Communication Line

About US:

1> We Hochiry Energy Technology Co., Ltd is final manufacturer and has been doing this business for over ten years , We supply a wide variety of LifePO4 battery: 12V to 96V & 7Ah to 1000Ah

2> We have own factory, which means all Lifepo4 batteries are produced by us, we are very experienced in manufacturing products, please trust us that we can do a good job of your quality management

3> We have own testing room, which means we do charge and discharge tests on all batteries before shipping, we can ensure to make high quality and more stable products

4> and We also can adjust our order and production schedule at any time according to the needs of our customers

5> Support OEM & ODM customization and add your logo
48v1000ah (50kwh) Lifepo4 Battery Solar Energy Storage System With RS485 CAN BMS 1


48v1000ah (50kwh) Lifepo4 Battery Solar Energy Storage System With RS485 CAN BMS 2
Partnerships
48v1000ah (50kwh) Lifepo4 Battery Solar Energy Storage System With RS485 CAN BMS 3
48v1000ah (50kwh) Lifepo4 Battery Solar Energy Storage System With RS485 CAN BMS 4




Reviews & Feedback

48v1000ah (50kwh) Lifepo4 Battery Solar Energy Storage System With RS485 CAN BMS 5




This is our 50KWH Solar Project in the factory

48v1000ah (50kwh) Lifepo4 Battery Solar Energy Storage System With RS485 CAN BMS 6
48v1000ah (50kwh) Lifepo4 Battery Solar Energy Storage System With RS485 CAN BMS 7
48v1000ah (50kwh) Lifepo4 Battery Solar Energy Storage System With RS485 CAN BMS 8
The features of this product
48v1000ah (50kwh) Lifepo4 Battery Solar Energy Storage System With RS485 CAN BMS 9

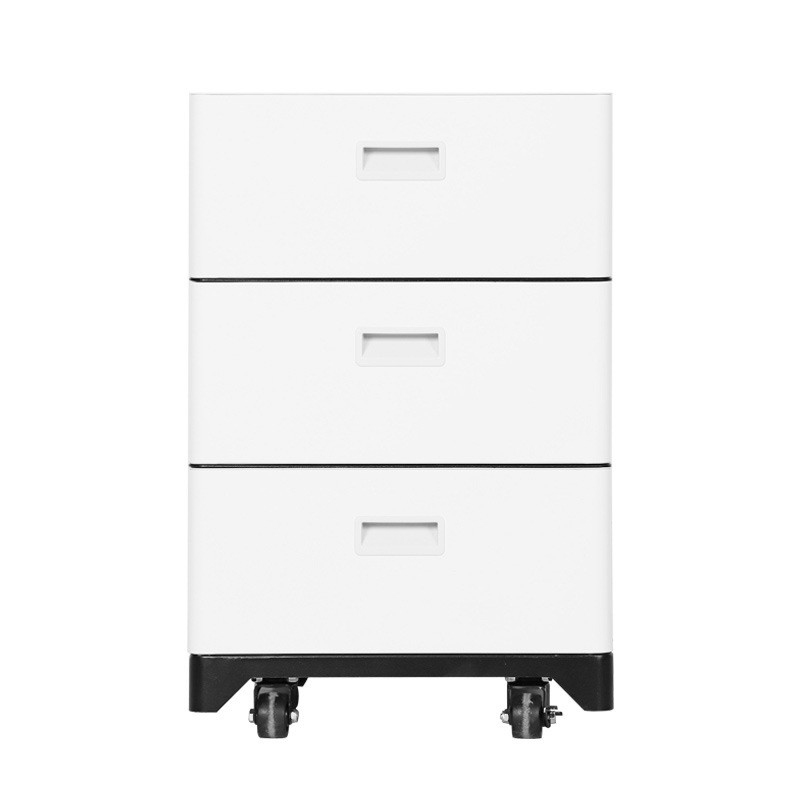

Stackable LiFePO4 51.2V 10KWH 20KWH 30KWH 40KWH 50KWH Battery
1> Single pack is 10Kwh Lifepo4 solar battery

2> Equipped with Automotive Grade Lifepo4 battery cells, the quality is outstanding.

3> With the stackable design, It is easy to extend to 20Kwh 30Kwh 40Kwh 50Kwh to meet the needs of different customers

4> comes with the LCD screen,you can read the information of battery anytime, like capacity voltage, voltage of cells

5> this battery is compatible with the most famous 48V low voltage inverter, the BMS is customized for home solar storage system
48v1000ah (50kwh) Lifepo4 Battery Solar Energy Storage System With RS485 CAN BMS 10



Single Module is 51.2V 10KWH
two modules in parallel will be 20KWH
48v1000ah (50kwh) Lifepo4 Battery Solar Energy Storage System With RS485 CAN BMS 11

Single Module is 51.2V 10KWH

three modules in parallel will be 30KWH
48v1000ah (50kwh) Lifepo4 Battery Solar Energy Storage System With RS485 CAN BMS 12

Single Module is 51.2V 10KWH

five modules in parallel will be 50KWH
48v1000ah (50kwh) Lifepo4 Battery Solar Energy Storage System With RS485 CAN BMS 13
48v1000ah (50kwh) Lifepo4 Battery Solar Energy Storage System With RS485 CAN BMS 14
48v1000ah (50kwh) Lifepo4 Battery Solar Energy Storage System With RS485 CAN BMS 15
48v1000ah (50kwh) Lifepo4 Battery Solar Energy Storage System With RS485 CAN BMS 16
48v1000ah (50kwh) Lifepo4 Battery Solar Energy Storage System With RS485 CAN BMS 17
48v1000ah (50kwh) Lifepo4 Battery Solar Energy Storage System With RS485 CAN BMS 18

HOW TO CONNECT BATTERIES IN PARALLEL
48v1000ah (50kwh) Lifepo4 Battery Solar Energy Storage System With RS485 CAN BMS 19
48v1000ah (50kwh) Lifepo4 Battery Solar Energy Storage System With RS485 CAN BMS 20
48v1000ah (50kwh) Lifepo4 Battery Solar Energy Storage System With RS485 CAN BMS 21
