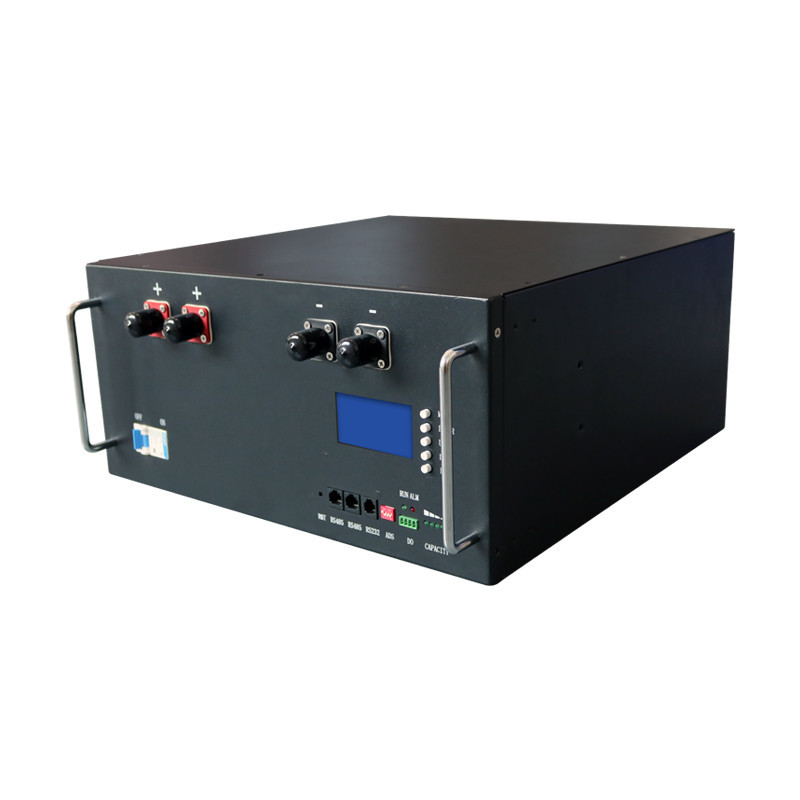

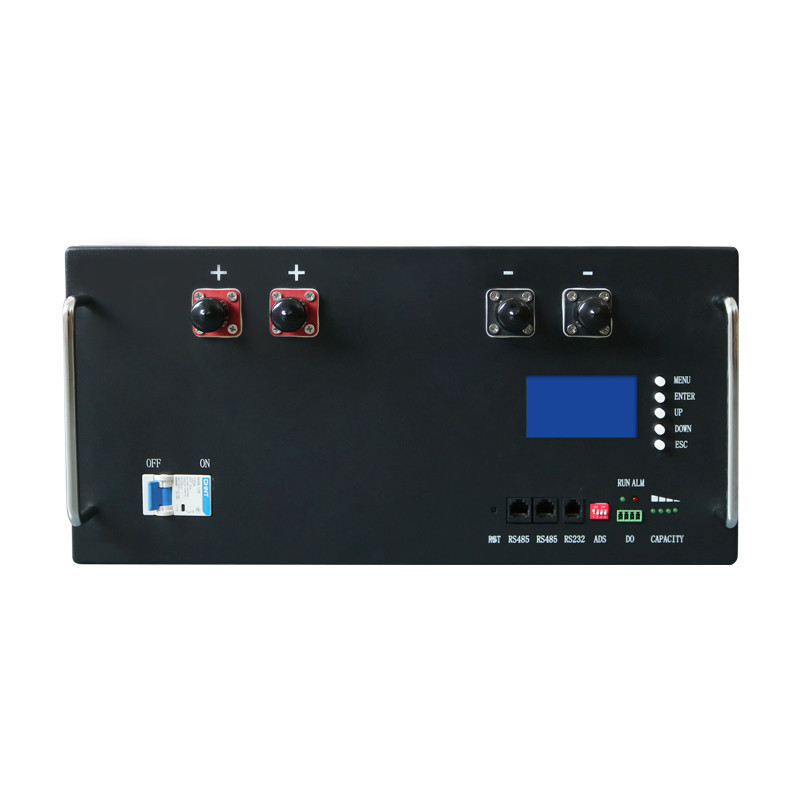

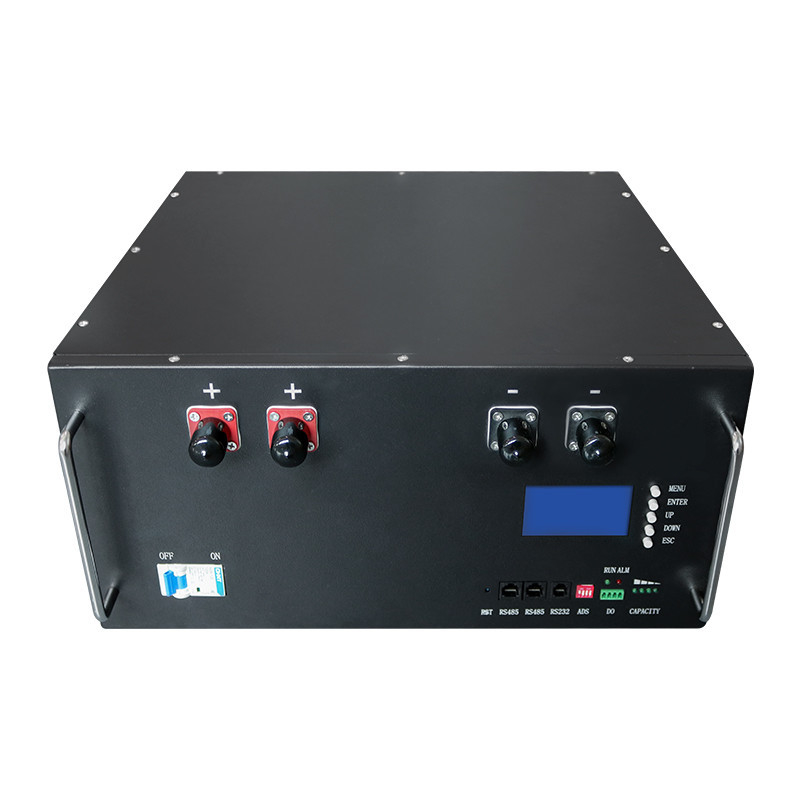

Smart BMS LiFePO4 Battery Module Solar Energy Storage System 5U 48V 200Ah

Smart BMS LiFePO4 Battery Module Solar Energy Storage System 5U 48V 200Ah

BMS LiFePO4 Battery Module

LiFePO4 Battery Module 48V 200Ah

LiFePO4 Lithium Battery Pack Module

Place of Origin:

CHINA

Brand Name:

Hochiry

Certification:

TUV

Contact Us

Request A Quote
Product Details
Product Name:
Rechargeable 48v 100ah Battery
Battery Type:
LiFePO4
Cycle Life:
3000cycle/6000cycle
Protection:
Built-in Smart BMS
Capacity:
50Ah/80ah/100Ah/200Ah
Application:
Solar, Wind, UPS Energy Storage
Communication Port:
RS232, RS485, CAN
Payment & Shipping Terms
Minimum Order Quantity
10PCS
Packaging Details
Product size: 23*12*20cm Manner of packing: Color Box Single weight:3kg QTY / Carton:4 unit / Carton Carton N.W.:15.4kg Carton G.W.:16.2kg Carton Size:49.5cm*46cm*21cm
Delivery Time
10-15 work days
Payment Terms
T/T, Western Union, MoneyGram
Supply Ability
10000 Piece per week
Product Description


5U 48V 100Ah For Telecom Base Station Lifepo4 Battery Pack Module





Smart BMS LiFePO4 Battery Module Solar Energy Storage System 5U 48V 200Ah 0





BASICPARAMETERS HCR4850-2U HCR48100-5U HCR48200-5U
Nominal Voltage(V) 48 48 48
Nominal Capacity(Wh) 2400 4800 9600
Dimension (mm) 442*480*88 442*480*220 442*650*220
Weight (Kg) 23 48 87
Discharge Voltage (V) 45~54 45~54 45~54
Charge Voltage (V) 52.5~54 52.5~54 52.5~54
Max Discharge Current (A) 50 100 125
Max Charge Current (A) 50 100 125
Communication RS232,RS485,CAN RS232,RS485,CAN RS232,RS485,CAN
Charging Temperature 0℃~50℃ 0℃~50℃ 0℃~50℃
Discharging Temperature -10℃~50℃ -10℃~50℃ -10℃~50℃
Shelf Temperature -20℃~60℃ -20℃~60℃ -20℃~60℃
Certification IEC / CE / UN38.3 IEC / CE / UN38.3 IEC / CE / UN38.3
Design life 10+Years(25℃/77℉) 10+Years(25℃/77℉) 10+Years(25℃/77℉)
Cycle Life >4500 ( 90% DoD) >4500 ( 90% DoD) >4500 ( 90% DoD)





PRODUCTS DISPLAY





Smart BMS LiFePO4 Battery Module Solar Energy Storage System 5U 48V 200Ah 1









































































Product Performance

Smart BMS LiFePO4 Battery Module Solar Energy Storage System 5U 48V 200Ah 2 Vertical industry integration ensures more than 6000 cycles with 90% DoD.
Smart BMS LiFePO4 Battery Module Solar Energy Storage System 5U 48V 200Ah 3 Compact and fashionable design fits in your sweet home environment.
Smart BMS LiFePO4 Battery Module Solar Energy Storage System 5U 48V 200Ah 3 Deliver up to 5KW with single module (2.4KWh).
Smart BMS LiFePO4 Battery Module Solar Energy Storage System 5U 48V 200Ah 3 Modular design gives the end customers the power of choice of capacity.
Smart BMS LiFePO4 Battery Module Solar Energy Storage System 5U 48V 200Ah 3 Compatible with most of the available Hybrid inverters.
Smart BMS LiFePO4 Battery Module Solar Energy Storage System 5U 48V 200Ah 3 Simple buckle fixing minimize the installation time and cost.
Smart BMS LiFePO4 Battery Module Solar Energy Storage System 5U 48V 200Ah 3 Safety Cert.TüV CE UN38.3 IEC.





PRODUCT ADVANTAGE





Smart BMS LiFePO4 Battery Module Solar Energy Storage System 5U 48V 200Ah 9





Smart BMS LiFePO4 Battery Module Solar Energy Storage System 5U 48V 200Ah 10





Smart BMS LiFePO4 Battery Module Solar Energy Storage System 5U 48V 200Ah 11













































































































































You can optionally add mounting brackets HCR 4850-2U to this product for a stable base, and to allow easy-stacking of multiple up to 10pcs at max.



APPLICATION





Smart BMS LiFePO4 Battery Module Solar Energy Storage System 5U 48V 200Ah 12































Energy Storage
--Solar-Wind Power System / City Grid (On/Off) / Community and Family
Back-up System and UPS
--Telcom Base / CATV system / Computer Server Center / Medical Instrumnt / Military Equipment
Other Applications
--Security and Electronics / Mobile POS, Mining Lihgt / Torch / LED Light / Emergency Light
--RV Motorhome /Golf Carts Battery / Boat Marine Yachts / Electric Skateboard
--LED Backup / Engine Starting Battery,etc.



Smart BMS LiFePO4 Battery Module Solar Energy Storage System 5U 48V 200Ah 13





PACKING

Smart BMS LiFePO4 Battery Module Solar Energy Storage System 5U 48V 200Ah 14

Good Quality Packs
VS
Smart BMS LiFePO4 Battery Module Solar Energy Storage System 5U 48V 200Ah 15

Low Quality Packs

SUPER SAFETY TEST



Smart BMS LiFePO4 Battery Module Solar Energy Storage System 5U 48V 200Ah 16

Passed the below abuse and safety test-short-circuit, dropping, nail penetration, impact, crush, thermal shock, over-charge,over-discharge: no fire, no explosion with stable chemical structure.



WHY CHOOSE US



 Experience--More than 12 years Specialized in lithium battery, Leaders of Lithium Lifepo4 Battery.
 Certification--CE,UL,MSDS,Test Report from National Center For Quality Supervision and Inspection of Battery Products approved.
 Quality Control-- 37 production process,7 steps quality check to promise stable quality and high reliability for you.
 Best Material-- Insist on choosing top quality cell, material and accessories,lithium battery last longer time.
 Fresh battery-- All battery is fresh Production.



Smart BMS LiFePO4 Battery Module Solar Energy Storage System 5U 48V 200Ah 17
