Place of Origin:
CHINA
Brand Name:
Hochiry
Certification:
TUV
Model Number:
HDS- AC-E22-7KW
Contact Us
|
1 Electric parameter
|
|
|
1.1 Rated Frequency
|
50/60Hz
|
|
1.2 Rated current
|
8/10/13/16/32A
|
|
1.3 Rated voltage
|
single-phase, 230V±15%, 50/60Hz
|
|
2 Mechnical Parameter
|
|
|
2.1 IP Code
|
IP66
|
|

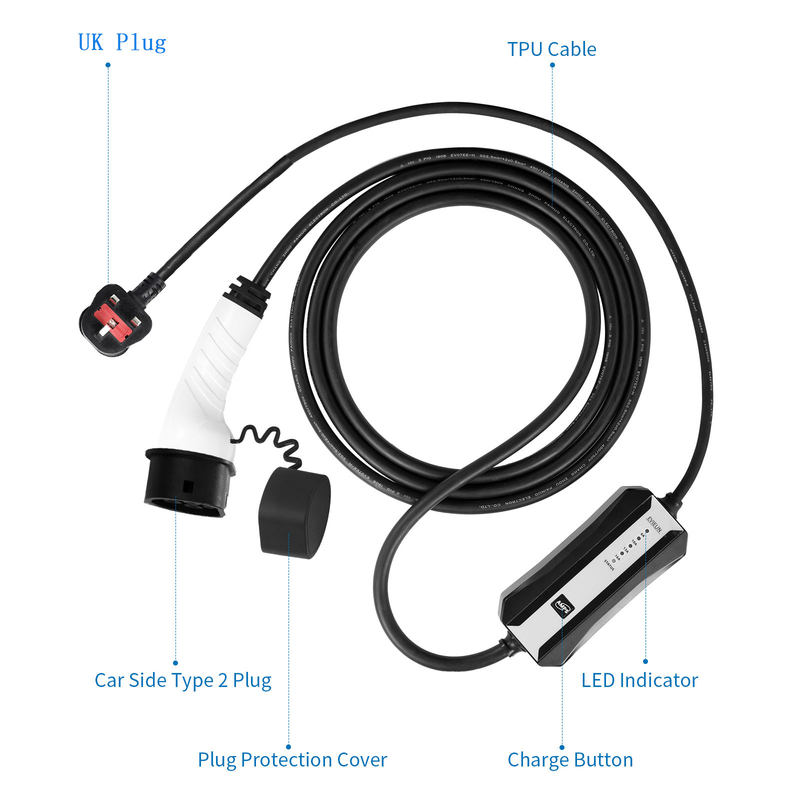

2.2 Charging Adapter Cable
|
5 meters cable or custom length
|
|
2.3 Dimensions
|
W × D × H = 240mm × 90mm × 70mm
|
|
2.4 Weight
|
＜5kg
|
|
2.5 Input Plug Standard
|
Select one of the following options:Blue CEE, NEMA Plug, UK Plug, Schuko Plug or AU Plug
|
|
3 Functional Description
|
|
|
3.1 Charging Control Model
|
Plug and play
|
|
3.2 Display Screen
|
OLED screen (display charging current, voltage, output energy, charging time, state information, fault information and etc.)
|
|
3.3 Indicator Light
|
3 indicator lights (indicate 3 status include power, connect, charging and fault)
|
|
3.4 RCD type
|
Type A
|
|
3.5 Adjustable output current
|
Button options: 8A/10A/13A/16/32A
|
|
3.6 Preset function
|
Preset charging time trough the button
|
|
3.7 Safety Protection
|
surge protection, over temperature, leakage, over/under voltage, over current, ground protection
|
|
4 Environmental Conditions
|
|
|
4.1 Operational environment
|
indoor or outdoor, good ventilation, no flammable, explosive or corrosive gases
|
|
4.2 Vibration
|
＜0.5G, no violent vibration and impact
|
|
4.3 Altitude
|
≤2000 meters
|
|
4.4 Storage Temperature
|
-30 ~ 75 ℃ (-22 ~ 167 ℉)
|
|
4.5 Operating Temperature
|
-30 ~ 55 ℃ (-22 ~ 131 ℉)
|
|
4.6 Operating humidity
|
95%RH, no water droplet condensation
|
