Place of Origin:
CHINA
Brand Name:
Hochiry
Certification:
TUV
Model Number:
HDS- AC-E22-7KW
Contact Us
|
Model
|
HDS- AC-E22-7KW
|
HDS-AC-E22-11KW
|
HDS-AC-E22-22KW
|
|
|
Electrical index
|
||||
|
Power connection
|
1P+N+PE
|
3P+N+PE
|
3P+N+PE
|
|
|
Input/output voltage
|
230VAC±10%
|
400VAC±10%
|
400VAC±10%
|
|
|
Frequency
|
50HZ±10%
|
|||
|
Rated power
|
7KW
|
11KW
|
22KW
|
|
|
Rated current
|
32A
|
16A
|
32A
|
|
|
General Specifications
|
||||
|
Charging mode
|
IEC 61851-1, IEC 61851-22 Charging model-3
|
|||
|

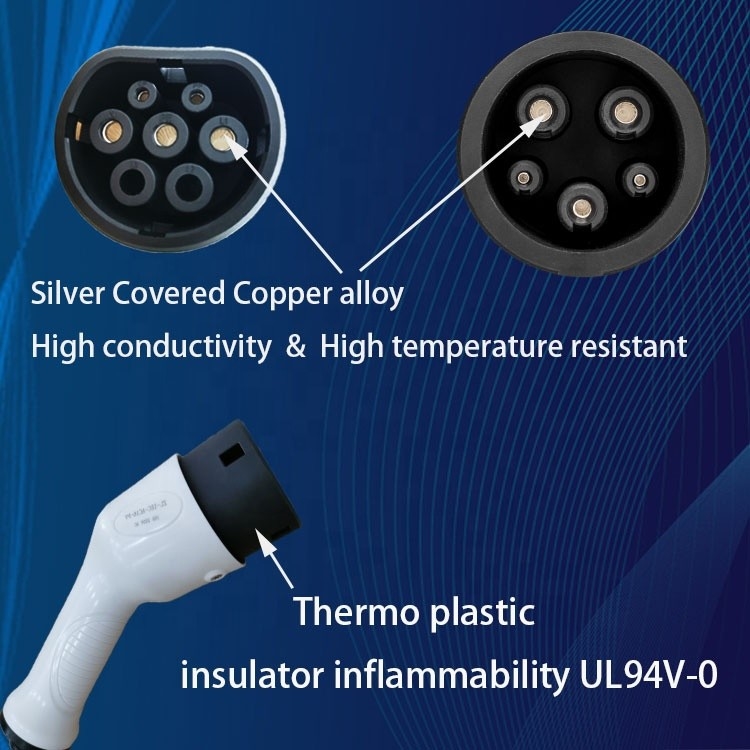

AC plugs
|
IEC 62196-2 AC Type2
|
|||
|
Display
|
4.3”TFT Color touch screen
|
|||
|
RFID system
|
Mifare (Classic, DesFire EV1) or others on request
|
|||
|
Communication
|
GPRS /LAN/Wi-Fi
|
|||
|
Communication Protocols
|
Customizable
|
|||
|
Place of installation
|
Indoor and outdoor
|
|||
|
Altitude
|
6000m(Derating over 3000m )
|
|||
|
Protection grade
|
IP54
|
|||
|
Operating Temperature
|
-20-60℃(Derating over 50℃ )
|
|||
|
Storage Temperature
|
-40-70℃
|
|||
|
Humidity
|
5%~95% without condensation
|
|||
|
Cooling mode
|
Natural cooling
|
|||
|
Length of charging gun cable
|
5m(optional)
|
|||
|
Dimensions(W*D*H)
|
224*100*320mm
|
250*120*350mm
|
||
|
Weight
|
8kg
|
10.5kg
|
11kg
|
|
| Compatible Model | |||
| BMW | BMW 5 Series 530e, BMW X5 xDrive40e, BMW i3 | Subaru | Subaru Crosstrek Hybrid |
| Ford | Ford C-Max Energi, Ford Fusion Energi, Ford Mustang Mach-E | Fiat | Fiat 500e |
| Chevrolet | Chevrolet Bolt EV, Chevrolet Volt | Jaguar | Jaguar I-PACE |
| Hyundai | Hyundai Ioniq Electric, Hyundai Kona Electric | KIA | Kia Niro PHEV |
| Nissan | Nissan LEAF S, Nissan LEAF S PLUS | Porsche | Porsche Cayenne S E-Hybrid |
| Honda | Honda Clarity Electric, Honda Clarity PHEV | Volkswagen | Volkswagen e-Golf |
| Toyota | Toyota Prius Prime | Chrysler | Chrysler Pacifica |
| Mitsubishi | Mitsubishi Outlander PHEV | ||
