Name: 288 Cores Fiber Optic Splice Closure FOSC Wall Pole Mountable
Brand: Hochiry
SKU: HDS-905
Rating: 4.7 (199 reviews)

Home > products > Fiber Optic Splice Closure >

288 Cores Fiber Optic Splice Closure FOSC Wall Pole Mountable

288 Cores Fiber Optic Splice Closure

ROHS Fiber Optic Splice Closure

FOSC Fiber Optic Closure

Place of Origin:

CHINA

Brand Name:

Hochiry

Certification:

CE ROHS

Model Number:

HDS-905

Request A Quote

288 Cores Fiber Optic Splice Closure FOSC Wall Pole Mountable

Product Details

Product Name:

Fiber Optic Splice Closure

Material:

ABS/PC

Type:

Dome Type

Application:

FTTH FTTB FTTX Network

Sealing Methode:

Mechanical Sealing/Melt Glue

Max Capacity:

144 Fibers

Size(mm):

435x190Φ(155)

Payment & Shipping Terms

Minimum Order Quantity

100PCS

Packaging Details

46×42×69CM 20.9KG/8PCS

Delivery Time

20-25 work days

Payment Terms

T/T, Western Union, MoneyGram

Supply Ability

10000 Pieces per Week

Mini Square Optical Fibre Cable Joint Closure 4-Φ20mm IP67 21020045mm

Get Best Price

Outdoor Dome Fiber Optic Splice Closure Waterproof ABS / PC Material

Get Best Price

16 Core FTTH Fiber Access Terminal Box Caixa Caja Outdoor Wall With CTO Inline Drop Cable

Get Best Price

NAP FTTH Fiber Optic Splice Closure / Dome Enclosure Silicone Rubber Mechanical ODM

Get Best Price

86-180-25320086

info@szhodas.com

86-0755-5320086

Contact Now

Product Description

Wall Pole Mountable 288 Cores Fiber Optic Splice Closure Enclosure Box

The cable box is mainly used for optical fiber connection and protection. This kind of box is suitable for the connection of overhead, pipe and buried straight and branch.The box body and base are sealed with hoops and rubber. The closure casing is made of quality engineering plastics, and of good performance of anti-erosion against acid and alkali salt, anti-aging, as well as smooth appearance and reliable mechanical structure. The mechanical structure is reliable and has the performance of resisting wild environment and intensive climate changes and serious working environment.The splice trays (FOST) inside the closure are turn-able like booklets, and have adequate curvature radius and space for winding optical fiber to make sure the curvature radius for optical winding 40 mm. Each optical cable and fiber can be operated individually.The product can be opened again and reused after installation.

Product Name	288C Fiber Optic Splice Closure
Size(mm)	380mm(L)245mm(W)130mm(H)
The material	PP+GF
Ports	4 inlet 4 outlet
Maximum number of trays	With 12pcs 24 tray
Specifications(No. of Fiber)	288C
The net weight(kg)	4.535kg

Features

♦ Excellent mechanical properties
♦ Excellent sealing performance
♦ The product has multiple reuse and capacity expansion functions
♦ It has the capability to protect the optical fiber connector from environmental impact
♦ Good corrosion resistance, compressive resistance and tensile strength

Product categories:

♦ According to the shape and structure can be divided into cap type cable box and horizontal cable box two;
♦ According to the laying method of optical cable, there are such types as overhead, pipeline (tunnel) and directly buried;
♦ According to the cable connection mode is divided into straight connection and split connection;
♦ There are thermal shrinkage seal and mechanical seal according to the sealing way.

Application:

widely used in FTTH access network.
Telecommunication Networks
CATV Networks
Data communications Networks
Local Area Networks

Details Pictures:

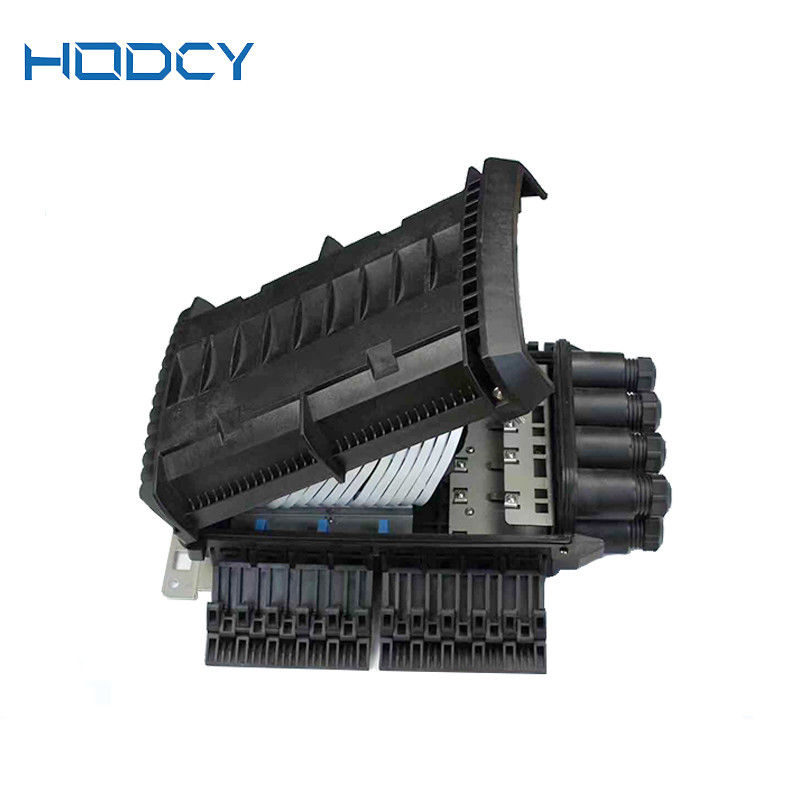

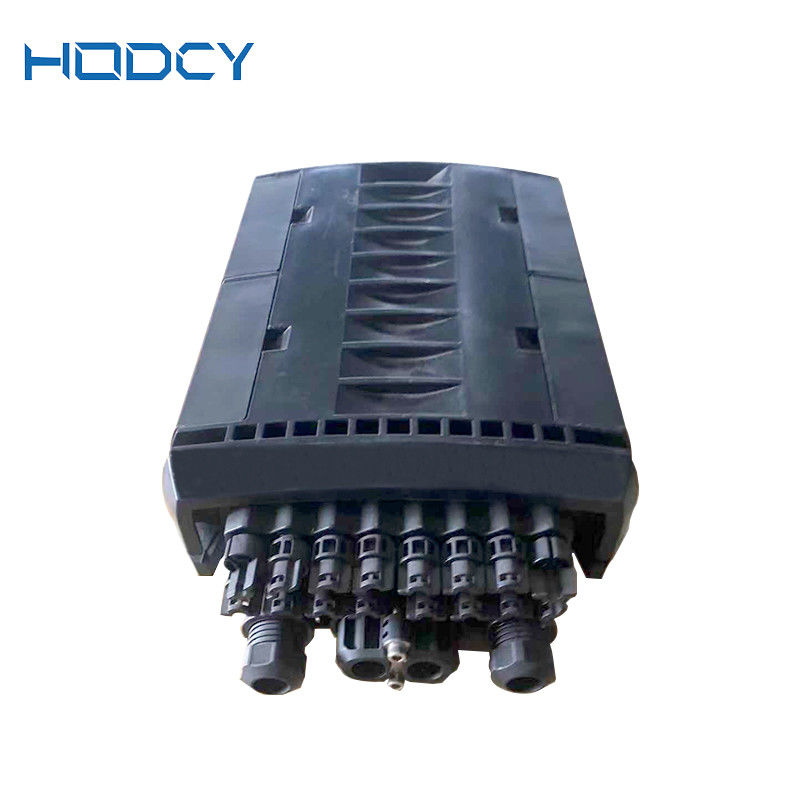

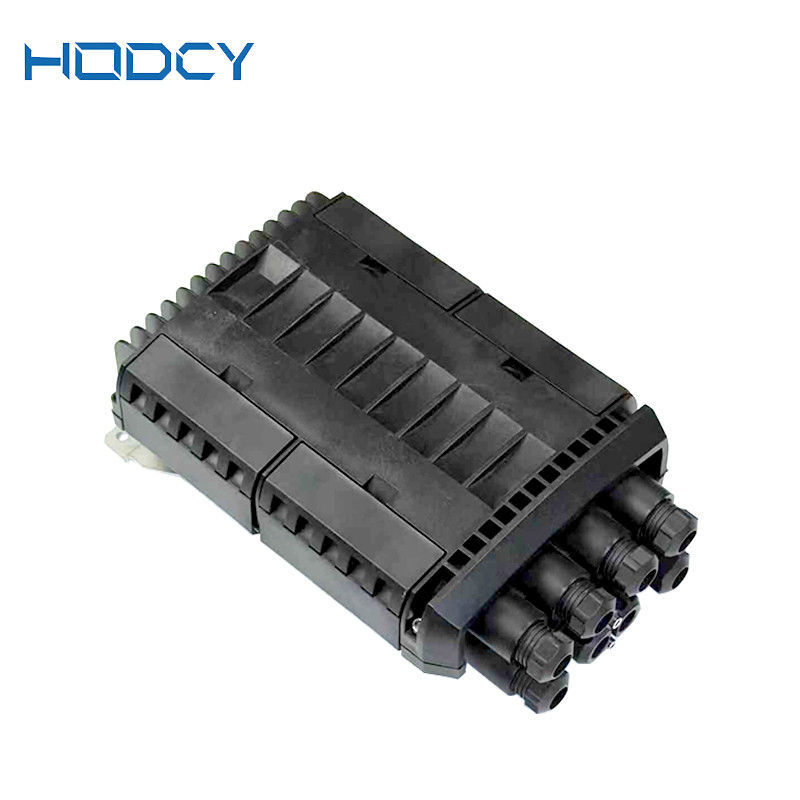

288 Cores Fiber Optic Splice Closure FOSC Wall Pole Mountable 0
