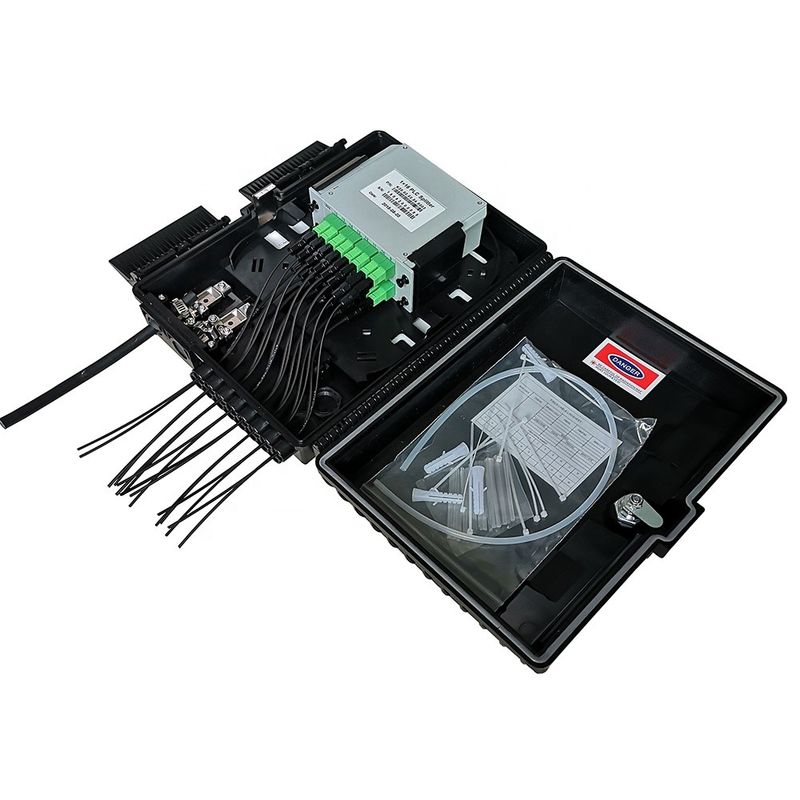

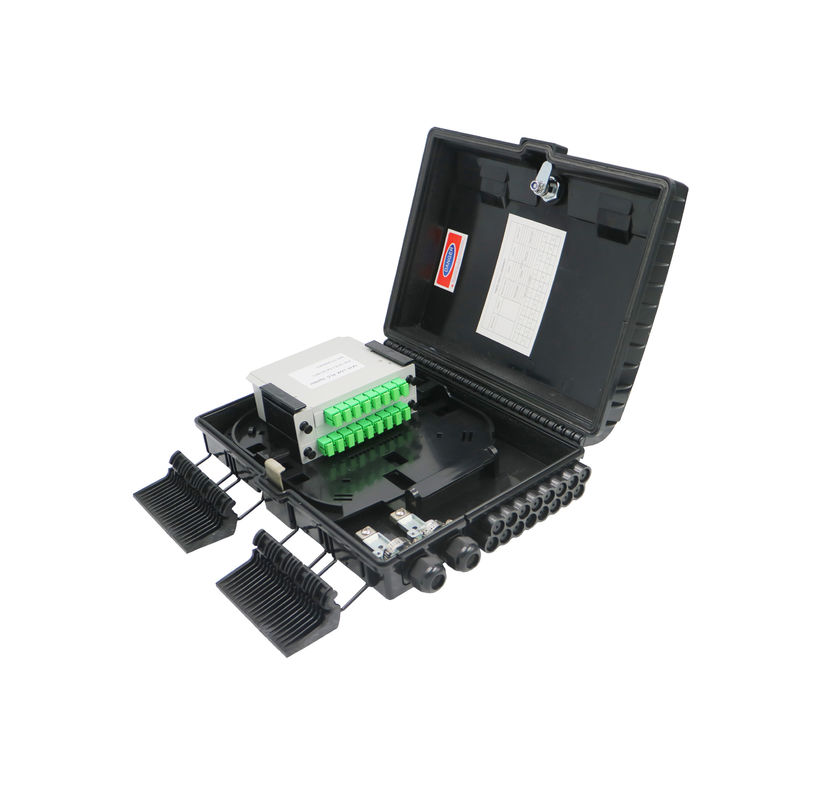

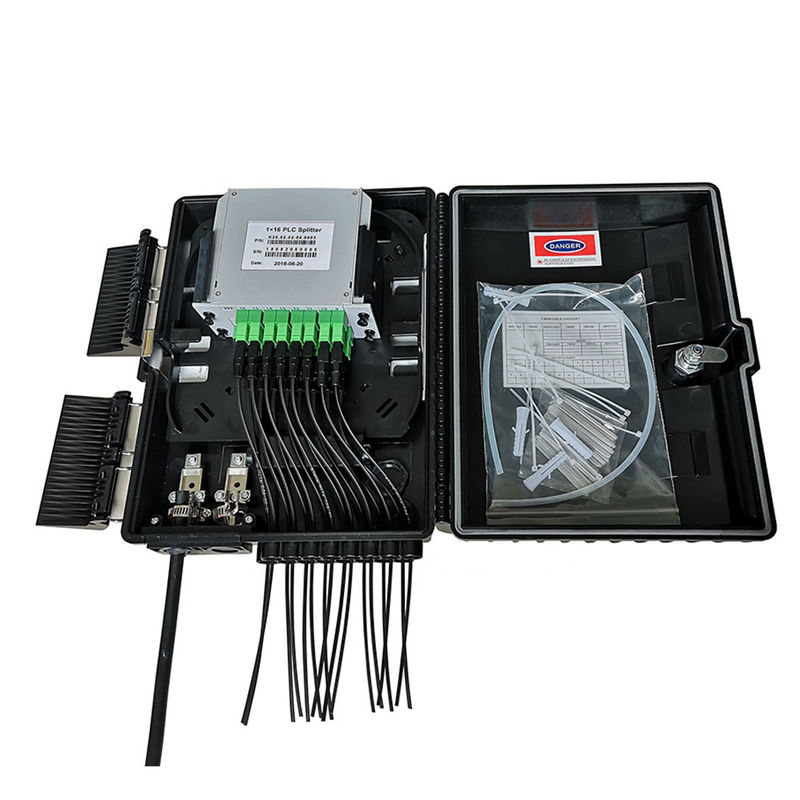

ABS FDB Nap Fiber Optic Distribution Box 16 Ports Network Termination Box

Ftth Outdoor NAP 16 Core FDB Fiber Optic Terminal Distribution Box

1. Description:
The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system.
The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for
the FTTx network building.

2. Features:
1.Total enclosed structure.
2. Material: PC+ABS,wet-proof,water-proof,dust-proof,anti-aging,protection level up to IP65.
3. Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.
4. Cable,pigtails,patch cords are running through own path without disturbing each other,cassette type SC adaptor installation,
easy maintenance.
5. Distribution panel can be flipped up, feeder cable can be placed by expression port, easy for maintenance and installation.
6. Cabinet can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses.

Accessories

1. Wall mounting kits : 4 pieces
2. Screws : 4 pieces
3. Cable tie: 10 pieces
4. Heat shrink protective sleeves: 16 pieces
5. Key :1 piece

widely used in FTTH access network.
Telecommunication Networks
CATV Networks
Data communications Networks
Local Area Networks
