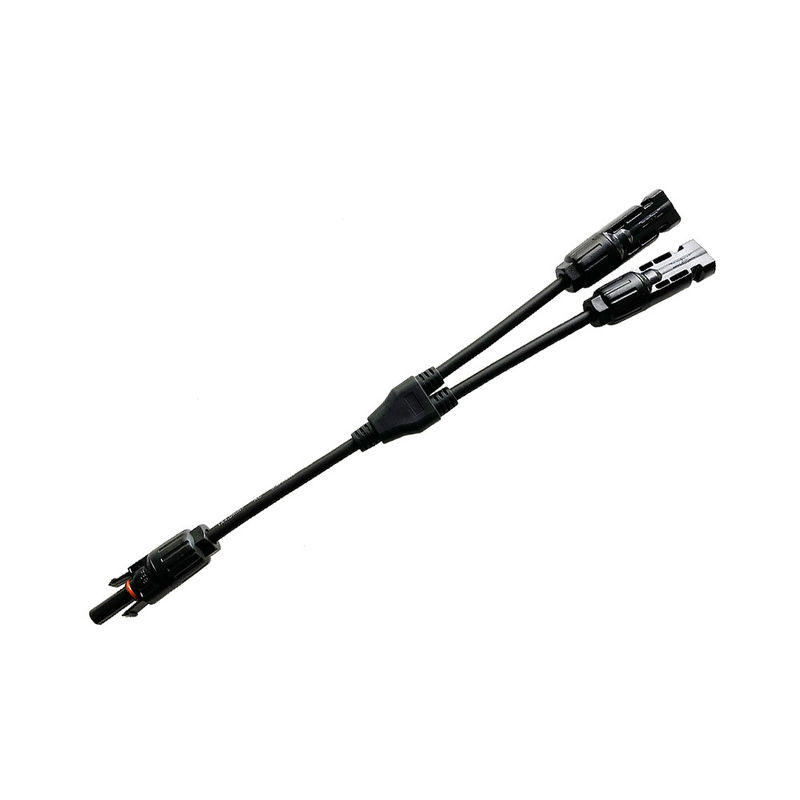

Name: Y Branch Solar PV Connector 2.5 To 6mm2 Sunlight Resistance Anti Aging
Brand: Hochiry
SKU: MCY102
Price: 3.5 USD
Availability: InStock
Rating: 4.6 (127 reviews)

Home > products > Solar PV Connector >

Y Branch Solar PV Connector 2.5 To 6mm2 Sunlight Resistance Anti Aging

Anti Aging Solar PV Connector

2.5mm2 Solar PV Connector

6mm2 Solar Y Branch Connectors

Place of Origin:

CHINA

Brand Name:

Hochiry

Certification:

TUV

Model Number:

MCY102

Request A Quote

Y Branch Solar PV Connector 2.5 To 6mm2 Sunlight Resistance Anti Aging

Product Details

Rated Voltage:

1000V/1500V

Connector Type:

Male & Female Solar Connector

Test Voltage:

8kV(50Hz,1 Min)

Contact Resistance:

<5mΩ

Pins:

1pin

Contact Material:

Copper,Tin Plated

Product Name:

Y Branch Connector

Waterproof Protection:

IP68

Payment & Shipping Terms

Minimum Order Quantity

100 PCS

Price

3.5USD/PCS

Packaging Details

Standard carton(500sets/ctn), 21g/set N.W:10.8KG G.W:11.3KG Size: 40*26*31cm

Delivery Time

5-8 work days

Payment Terms

T/T, Western Union, MoneyGram

Supply Ability

50000 Pieces per Week

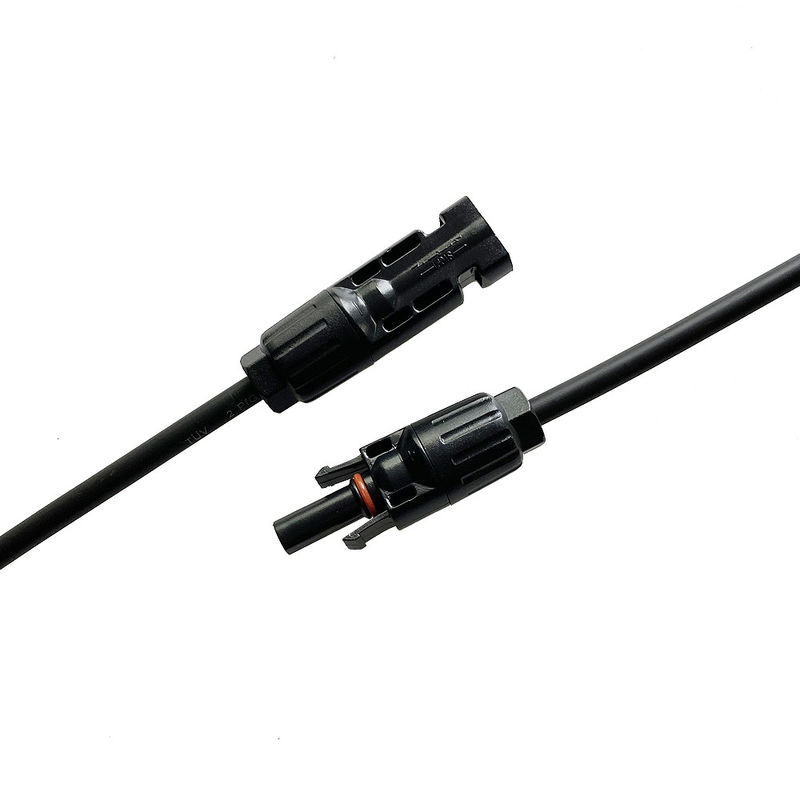

Solar MC4 Male And Female Connectors 2.5-6mm2 IP2X / IP67

Get Best Price

4 In 1 MC4Y Solar PV Connector 30A Electric Wire Connector 1pin

Get Best Price

1500V IP65 Waterproof Electrical Wire Connectors , MC4 Branch Connector

Get Best Price

MC4 Y Solar Branch Connector 1 To 4 IP68 For Power Generation

Get Best Price

86-180-25320086

info@szhodas.com

86-0755-5320086

Contact Now

Product Description

Waterproof IP67 2.5 to 6mm2 Cable Solar Connector

TUV Cable MC4Y5 Connectors PV Connectors Description:
a. Application:Applied to solar panels for power generation and related components of the wiring, connection,particularly suitable for outdoor . Resistance to sunlight, anti-aging , Using the low smoke halogen-free flame retardant materials, higher grade, more safety .
b. Construction:MC4 Y Solar PV Connector, with TUV certified, has inner drum-type material metal connectors, the plugs and minus connector are used with the cable, made of PC material, easy to connector with each other. It is important and indispensable components for photoelectric system.

TUV Cable MC4Y5 Connectors PV Connectors Advantages:
a. Simple on-site processing
b. Mating safety provided bykeyed housings
c .Multiple plugging and unplugging cycles
d. Accomodates PV cable with different insulation diameters
e. High current carrying capacity
f. TUV and UL approved

TUV Cable MC4Y5 Connectors PV Connectors Technical Data:

Product Name	MC4Y5 Connector
Rated Current	30A(2.5~6mm2)
Rated Voltage	1000V DC
Test Voltage	6000V(50HZ, 1min)
Overvoltage category/Pollution degree	CAT III/2
Contact resistence of plug connectors	1 mΩ
Conatct material	Copper, Ag plated
Insulation material	PPO
Degree of protection	IP20/IP67
Flame class	UL94-V0
Safety class	II
Suitable cable	2.5-6mm2
Insertion force/Withdrawal force	≤50N/ ≥50N
Connecting system	Crimp connection
Temperature range	-40ºC~+125ºC
Packing unit	1000pcs
Minimum order quantity	1000pcs
Weight per Piece (excluding packing)	25g
Custom tariff number	8536690000
Country of origin	China
