Place of Origin:
CHINA
Brand Name:
Hochiry
Certification:
TUV
Model Number:
MC4 Female
Contact Us

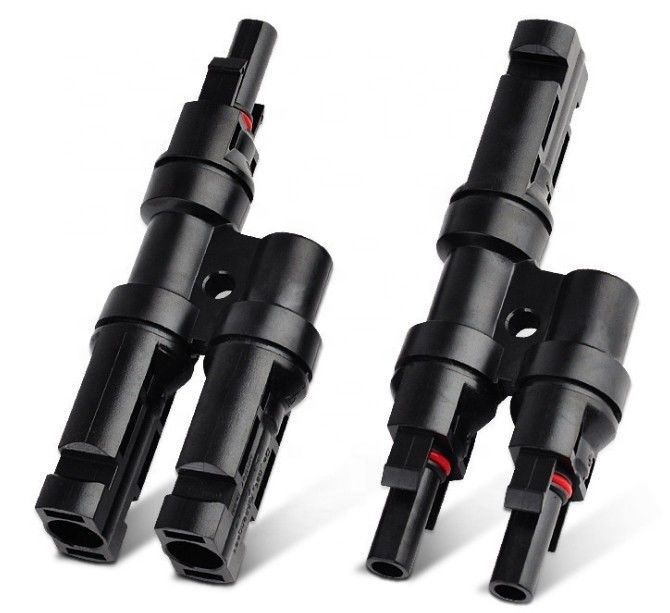

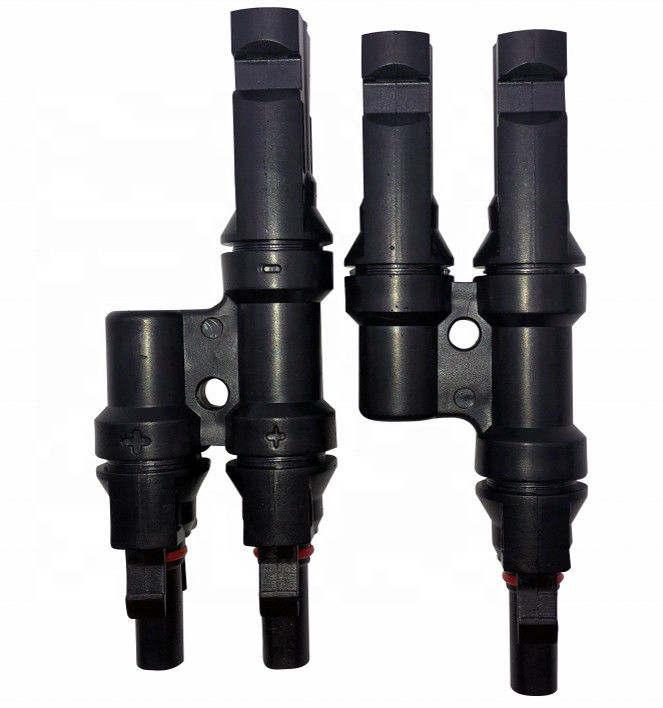

MC4T3 Connector for DC Cable Description:
a. Application:Applied to solar panels for power generation and related components of the wiring, connection,particularly suitable for outdoor . Resistance to sunlight, anti-aging , Using the low smoke halogen-free flame retardant materials, higher grade, more safety .
b. Construction:MC4 Solar PV Connector, with TUV certified, has inner drum-type material metal connectors, the plugs and minus connector are used with the cable, made of PC material, easy to connector with each other. It is important and indispensable components for photoelectric system.
MC4T3 Connector for DC Cable Advantages:
a.Simple on-site processing
b.Mating safety provided bykeyed housings
c.Multiple plugging and unplugging cycles
d.Accomodates PV cable with different insulation diameters
e.High current carrying capacity
f. TUV and UL approved
MC4T3 Connector for DC Cable Technical Data:
| Product Name | MC4T3 Connector |
| Rated Current | 30A(2.5~6mm2) |
| Rated Voltage | 1000V DC |
| Test Voltage | 6000V(50HZ, 1min) |
| Overvoltage category/Pollution degree | CAT III/2 |
| Contact resistence of plug connectors | 1 mΩ |
| Conatct material | Copper, Ag plated |
| Insulation material | PPO |
| Degree of protection | IP20/IP67 |
| Flame class | UL94-V0 |
| Safety class | II |
| Suitable cable | 2.5-6mm2 |
| Insertion force/Withdrawal force | ≤50N/ ≥50N |
| Connecting system | Crimp connection |
| Temperature range | -40ºC~+125ºC |
| Packing unit | 1000pcs |
| Minimum order quantity | 1000pcs |
| Weight per Piece (excluding packing) | 25g |
| Custom tariff number | 8536690000 |
| Country of origin | China |
1.What’s the application of photovoltaic connectors?
Photovoltaic connectors are used to connect solar photovoltaic power generation systems.
2.Which models do photovoltaic connectors include?
Line to line use cable PV connector (PV004), Multi ways input to one way output. Confluence PV connector (PV004-2T1/PV004-3T1/PV004-4T1 and PV004-T2/T3/T4/T5/T6).
3.How to select high quality photovoltaic connectors?
The connector shall have TUV or CE certification, and the conductor of the connector shall be plated with nickel-clad copper or silver-plated copper. The connector housing material shall be PC or high quality PPO material.
4.How long is the service life and quality assurance time of connector products?
Connector products can be used for at least 25 years the same as solar cell modules. The product quality guaranteed for 10 years.
