0.9mm Indoor Fiber Optic Cable / OM4 OM3 Multimode Fiber Cable Aqua Color

0.9mm Indoor Fiber Optic Cable / OM4 OM3 Multimode Fiber Cable Aqua Color

0.9mm Indoor Fiber Optic Cable

OM4 Indoor Fiber Optic Cable

OM3 Multimode Fiber Cable

Place of Origin:

CHINA

Brand Name:

Hochiry

Certification:

CE/ROHS/ISO9001/ANATEL

Model Number:

GJFJV Indoor Fiber Optical Cable

Contact Us

Request A Quote
Product Details
Product Name:
Indoor Fiber Optical Cable
Strength Member::
FRP
Fiber Count:
1-12cores
Type:
Tight-Buffered Fiber
Length:
2km Or Customized Length
Jacket:
LSZH PPVC
Structure:
Loose Tube
Fiber Type:
OM3 OM4
Application:
FTTH FTTB FTTX Network
Color:
Aqua
Payment & Shipping Terms
Minimum Order Quantity
10000 meter
Payment Terms
T/T, Western Union, MoneyGram
Product Description

Indoor 0.9mm Multimode OM3 OM4 Fiber optic Indoor Multi-purpose Distribution cable

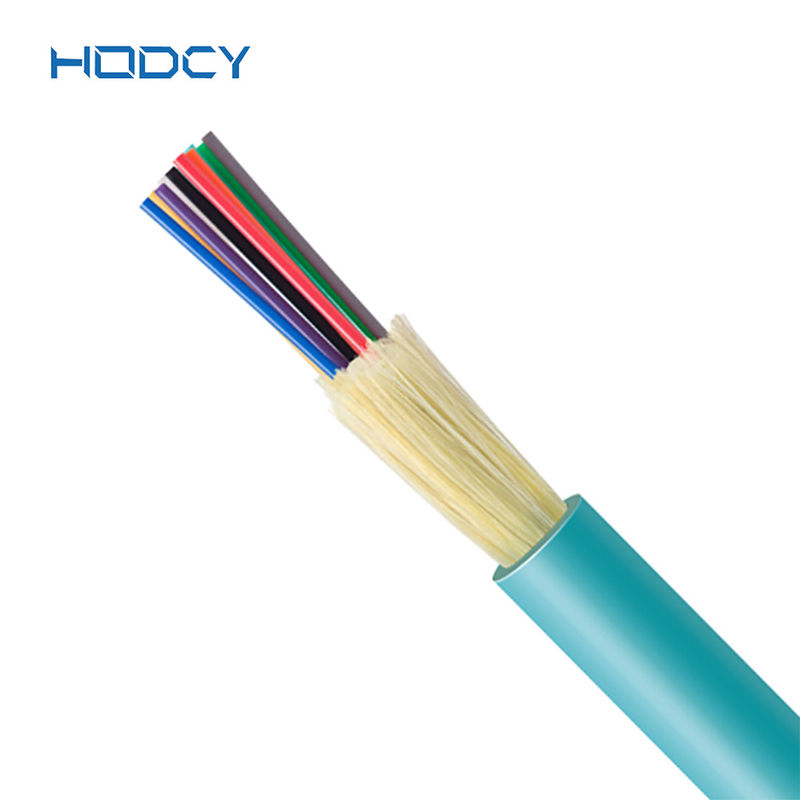

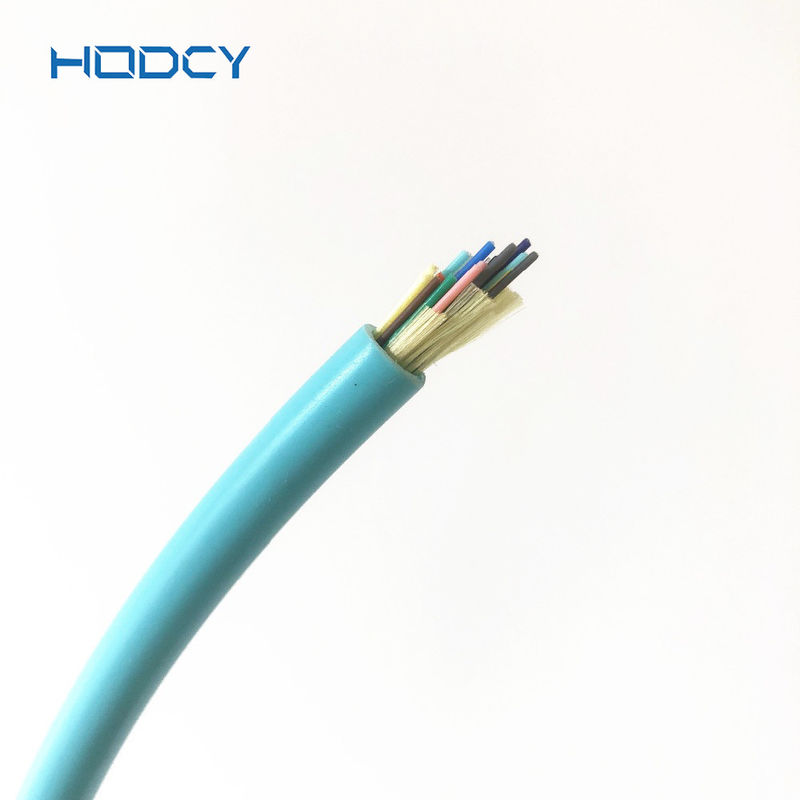

GJFJV multi-purpose distribution cable use several 900um flame-retardant tight buffer fiber as optical communication medium,the tight buffer fiber wrapped with a layer of aramid yarn as strength member units and then is completed with a PVC or LSZH (Low smoke,Zero halogen,Flame-retardant)
The tight buffer fibre is manufactured by sheathing the fibre with an appropriate buffer material. The diameter of Φ600μm or Φ900μm could be produced. The selection of top-quality fibre, specific production equipmentand accurately designed tools ensure a good performance of the product. Good mechanical and environmental characteristics





Features on Tight-Buffered Distribution Indoor Fiber Optical Cable:



Tight buffer fiber easy of stripping.
Tight buffer fiber have excellent flame-retardant performance.
The outer jacket material have many advantages such as anti-corrosion anti-water, anti-ultraviolet radiation, flame-retardant and harmless to environment etc.
Aramid yarn as strength member make cable have excellent tensile strength



Applications on Tight-Buffered Distribution Indoor Fiber Optical Cable:



Indoor any purpose cable distribution.
Backbone distribution cable in a building.
Multi optical fiber jumper.



Specifications on Tight-Buffered Distribution Indoor Fiber Optical Cable:



1. Excellent stripper ability with tight buffered fiber
2. Excellent flame retardant properties
3. High tensile strength due to aramid strength member
4. Excellent corrosion resistant, waterproof, flame retardant and
5. environmental- friendly properties of the outer sheath



No. of cable
2
Fiber Model
G.657A2
Strength Member
Material
Aramid yarn
Tight buffer
Material
PVC
Diameter(±0.06)mm
0.9
Thickness(±0.03)mm
0.32
Outer Sheath
Material
LSZH
Thickness(±0.03)mm
0.45
Color
white
Cable Diameter(±0.2)mm
3.0
Cable Weight(±2)kg/km
7
Min. bending radius
Without Tension
10×Cable-φ
Under Maximum Tension
20×Cable-φ
Temperature range
(℃)
Installation
-20~+60
Transport&Storage
-30~+70
Operation
-30~+70



Package and Delivery

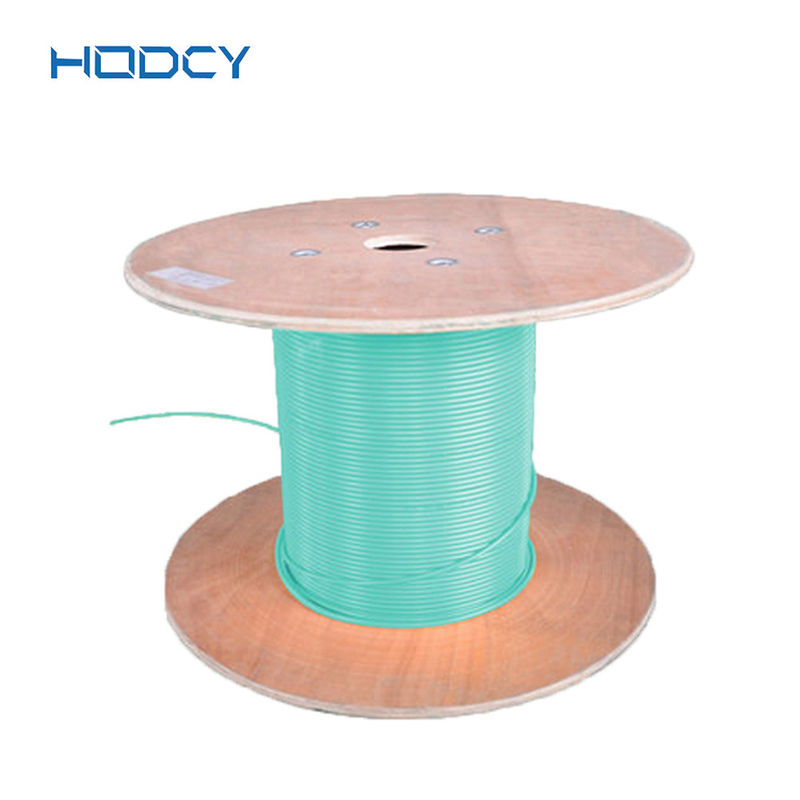

0.9mm Indoor Fiber Optic Cable / OM4 OM3 Multimode Fiber Cable Aqua Color 0
